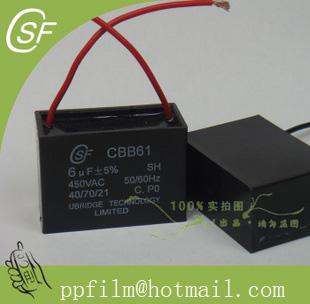

CBB61 Fan Motor Capacitor 450V 1UF

MOQ10 Piece(s)
Applicationfan
size CBB61
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

CBB65 variable capacitor Description: CONSTRUCTION: non-inductive wound metallized polypropylene COATING: flame retardant plastic case with resin seal RATED VOLTAGE:....

Company Information

Member Since 14 Years
Nature of Business Supplier
Year of Establishment 2007

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

CBB65 variable capacitor
Description:
CONSTRUCTION: non-inductive wound metallized polypropylene
COATING: flame retardant plastic case with resin seal
RATED VOLTAGE: 180VAC----500VAC(250V/370V/400V/440V/450V/500V)
LIFE EXPECTANCY: CLASS B-10.000h/CLASS C-3,000h
RATED FREQUENCY: 50/60Hz
RATED CAPACITANCE: 1uF---100uF
CAPACITANCE TOL.: +-5%, +-10% (standard), other tolerances upon request
CLIMATIC CATEGORY: 40/85/21 (IEC 60252)
OPERATING TEMP. RANGE: -40/+85C
CASE: Plastic
TEST VOLTAGE TERMINAL TO TERMINAL: 2 x Un for 60s (Un: rated voltage)
TEST VOLTAGE TERMINAL TO CASE: 2000VAC for 60s
SAFETY CLASS:P0/P2
MAX. PERMISSIBLE VOLTAGE(RMS): 1,1 x Un
MAX. PERMISSIBLE CURRENT(RMS): 1,3 x In
MAX. PERMISSIBLE REACTIVE OUTPUT: 1,35 x Qn
Approvals: UL,VDE,TUV,CSA,CQC
