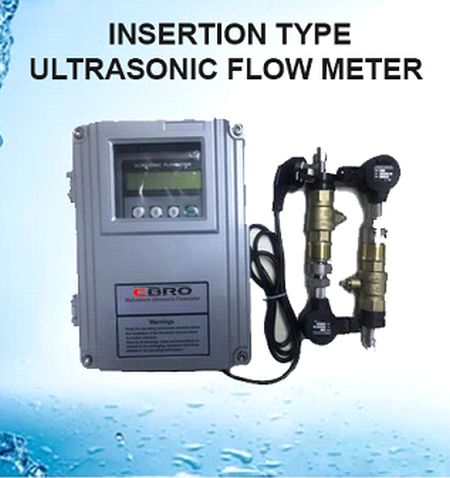

Wall Mounted Insertion Ultrasonic Flow Meter

MOQ10 Piece
Brand NameCBRO
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Salient Features: Cost-effective and versatile High accuracy 1.0% reading Non invasive, no moving parts, no pressure drop, no maintenance Easy and economical installation, no pipe cutting Wide....

View More Details

Send Enquiry

Company Information

CBRO INSTRUMENTS

Ghodbunder Road, Thane, Maharashtra

4.0/5

(1)

View Number

Member Since 5 Years
Nature of Business Manufacturer
GST No. 27AHYPC3352L1ZV

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Salient Features:

Cost-effective and versatile
High accuracy 1.0% reading
Non invasive, no moving parts, no pressure drop, no maintenance
Easy and economical installation, no pipe cutting
Wide measurement range 0.2 ~ 12m/s
Wide pipe size range (DN 15 ~ 4570mm)
Suitable for all commonly used pipe materials
Bidirectional measurement. Totaliser display for net, positive and negative flow
Ideal for both clean and opaque liquid flow measurement

Applications:

Chemical, petrochemical and process industries
Fertilizer industries
Pharmaceutical industries
Food and drug industries
Sugar, beverage industries
Paper and pulp industries
Water and waste water management
Dredging industries
Mining industries

Technical Specifications

Parameters	Single Path	Two Path	Four Path
General
Make	CBRO
Model	UFC250I
No. of Sensors	2	4	8
Operating principle	Transit time technology	Transit time technology	Transit time technology
Operating pressure	20 kg/cm2 max	20 kg/cm2 max	20 kg/cm2 max
Application	Raw, clear, sewage water & homogeneous liquids	Raw, clear, sewage water & homogeneous liquids	Raw, clear, sewage water & homogeneous liquids
Transmitter
Power supply	24 V DC ± 20% 110 V AC ± 15% 240 V AC ± 15% Solar powered	24 V DC ± 20% 110 V AC ± 15% 240 V AC ± 15% Solar powered	24 V DC ± 20% 110 V AC ± 15% 240 V AC ± 15% Solar powered
Velocity	±12 m/sec. Bidirectional	±12 m/sec. Bidirectional	±12 m/sec. Bidirectional
Display	2 lines, 16 characters LCD with backlight flow rate, velocity, totaliser	2 lines, 16 characters LCD with backlight flow rate, velocity, totaliser	2 lines, 16 characters LCD with backlight flow rate, velocity, totaliser
Units	User configurable English/Metric	User configurable English/Metric	User configurable English/Metric
Totaliser	FWD, NET, REV	FWD, NET, REV	FWD, NET, REV
Output – Analog	4 – 20 mA Std.*	4 – 20 mA Std.*	4 – 20 mA Std.*
Accuracy	±1% of reading @ rate >0.5 m/sec.	±0.5% of reading @ rate >0.5 m/sec.	±0.5% of reading @ rate >0.5 m/sec.
Repeatability	0.2% of Span	0.2% of Span	0.2% of Span
Protection class	IP 65	IP 65	IP 65
Dimensions	251X190X96 mm	500x400x300 mm	500x400x300 mm
Weight	< 2.5 kg	< 4.5 kg	< 6.5 kg
Security	Keypad lockout, access code enabled	Keypad lockout, access code enabled	Keypad lockout, access code enabled
Self diagnostic feature	Available	Available	Available
Facility to measure and display each path velocity	NA	Available	Available
Ability to work even though one or more path does not work	NA	Available	Available
Flow and totaliser unit programmability	Available	Available	Provided
Password protection for configuration data	Available	Available	Available
Totaliser value retention in the event of power fail condition	Available	Available	Available
RS 485 Modbus RTU Protocol	Available	Available	Available
Lightening protection units	Available	Available	Available
Sensor
Suited temp. – Std.	-40oC to 1200C	-40oC to 1200C	-40oC to 1200C
Pipe size	50 – 6000 mm dia	350 – 6000 mm dia	1000 – 6000 mm dia
Protection class	IP 65, IP 67, IP 68	IP 65, IP 67, IP 68	IP 65, IP 67, IP 68
Sensor dimensions	186 mm with 20 mm bore size	186 mm with 20 mm bore size	186 mm with 20 mm bore size
Weight	< 1.5 kg	< 1.5 kg	< 1.5 kg
Cable length	6 m std. can be extended up to 300 m	6 m std. can be extended up to 300 m	6 m std. can be extended up to 300 m
