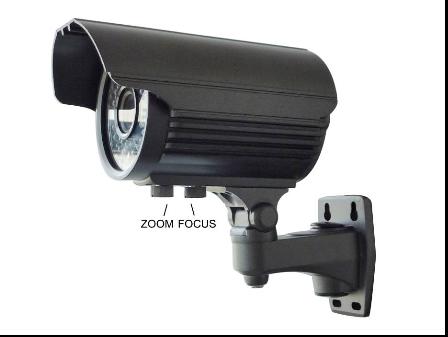

CCTV Camera Ir-072v

Main Features of LED ARRAY Waterproof Camera:
1. LED angle: In the market, mostly the LED angle is 8° -30° , that's why it like beam of flashlight, our LED array has angle 8° -120° (variable angle). Can illuminate the whole space evenly
2. High brightness, long range: One LED's Optical output is 5-15mW, while one LED Array can has the brightness of 200PCS LED thus has long range IR distance.
3. Long life span: LED Array's life span is 5-10 times of conventional LED, so calculate according to 7-8 hours a day, LED Array can use about 4-5 years.
4. High quality: LED Array's quality grade is Military grade which is higher than industry grade, has better quality than commercial grade LED. Under properly usage, LED Array will not damage.
MODEL NO VG-6096LR VG-6099HR VG-60998HR VG-60990HR (Effio-E)
Image Sensor 1/3 SONY SUPER HAD CCD 1/3 SONY HQ1 CCD 1/3" Sony Super HAD CCD (Effio)
Effective Pixels PAL: 500(Level)x582(Vertical) PAL: 795(Level)x596(Vertical)
NTSC: 795(Level)x596(Vertical) NTSC: 811(Level)x508(Vertical)
TVL System 420TVL 520TVL 540TVL 650TVL
System PAL/NTSC
Low LUX 0.5-0Lux(IR ON) 0.1Lux-0(IR-ON) 0.1Lux-0(IR-ON)
S/N Ratio > 48dB > 52dB
Video Output 1.0Vp-p/75Ω
White Balance AUTO
AGC AUTO
BLC AUTO
Electronic Shutter 1/50(1/60)~1/120, 000Sec
Gamma Correction 0.45
Sync System Internal
IR LED IR LED Array LED, IR distance 60m
LENS 8, 12, 16mm(Optional)
Power Supply DC12V ± 1V
Operation Temperature - 20 ° C - + 50 ° C
Dimension Φ 10� 170mm
Weight 1.3kg
Model No VG-60992HR (WDR)
Power DC12+10% Max 2.0W
Sensor 1/3 inch Sony CCD II
Total Pixels NTSC: 811(H)� 508(V)
PAL: 795(H)� 595(V)
Effective Pixels NTSC: 768(H)� 494(V)
PAL: 752(H)� 582(V)
Scanning System 2: 1 Interlace
Sync System Internal/Lime Lock
O. S. D Available
Dynamic Range 52dB(� 128)
Backlight Compensation WDR/BLC/OFF selectable
Resolution Color 700TVL
S/N(Y Signal) 52dB(AGC OFF)
Minimum Illumination Color Model: 0.003(0.6)lux(Sens-up OFF)
B/W Model: 0.0001(0.1)lux(Sens-up OFF)
White Balance ATW/AWC/Manual/Outdoor(1, 800° K - 10, 500° K)Indoor(4, 500° K - 8, 500° K)
Electronic Shutter Speed NTSC: 1/60 sec-1/120, 000sec PAL: 1/50sec-1/120, 000sec
Sense-Up Auto/Fixed/Off(selectable limit x2~x512)
Gain Control Low/Middle/High/Off selectable
3D-DNR Off/On(1`63 level adjustable)
Motion Detection On/Off(8Zone, Alarm output)
Privacy On/Off(8Zone)
IR LED The 3rd Generation Infrared LED Array (Military Grade);
Imports of dual glass lenses, High brightness, exposure distance 60m IR distance;
Mirror(H-REV) ON/OFF
FLIP(V-REV) ON/OFF
Freeze ON/OFF
SHARPNESS ON/OFF(Level Adjustable)
D/N Selection Color/Black White/Auto/Exit
STABILIZER ON/OFF
Digital Zoom On(x6)/Off
Blemish Compensation 64 Point(Even 32 point, ODD 32 Point)
Iris Control DC/Manual
Dimension Φ 10� 170mm
Weight 1.3kg
