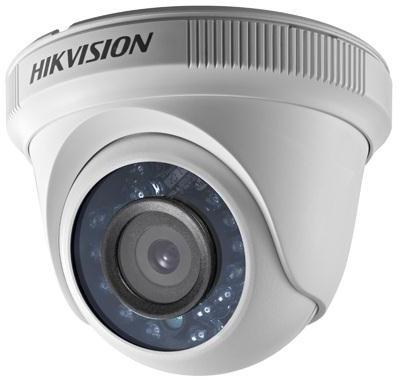

Contact SupplierCamera
image sensor:- 1mp cmos image sensor
signal system:- palntsc
effective pixels:- 1296(h)x732(v)
min. Illumination:- 0.1 lux @(f1.2,agc on), 0 lux with ir
shutter time:- 125(130) s to 150,000 s
lens:- 3.6mm (2.8mm, 6mm optional), angle of view: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm)
lens mount:- m12
adjustment range:- pan: 0 - 360°, tilt: 0 - 75°, rotation: 0 - 360°
day& night:- ir cut filter with auto switch
video frame rate:- 720p@25fps720p@30fps
hd video output:- 1 analog hd output
synchronization:- internal synchronization
sn ratio:- more than 62 db
general
operating conditions:- -40 °c - 60 °c (-40 °f - 140 °f)
humidity 90% or less (non-condensing)
power supply:-12 vdc±15%
power consumption:- max. 4w
weather proof:- ip66
ir range:- up to 20m
dimension:- φ89.5 × 69.8 mm(φ3.52” × 2.75”)
weight:- 260 g (0.57 lbs)
