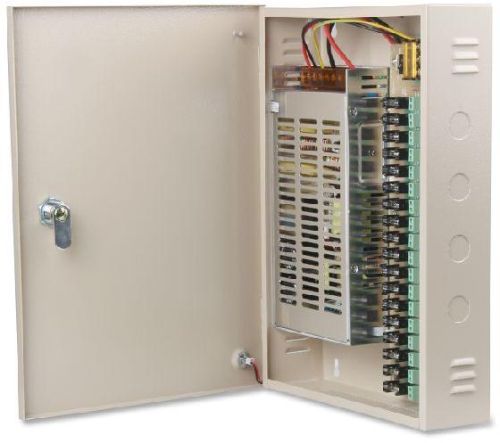

Contact SupplierIntegrated Power distribution for CCTV cameras,18 Channel ,12V20A Power Supply Box for surveillance camera systems.  Each channel is individually fused at 1.15 amp each.  20 Amp total output. Steady CCTV Camera power supply with the feature of Easy installation ,saves time and eliminates costly labor.Stable performance, high efficiency, low power consumption. Features: >> 110V/220V ON/OFF switch, Lockable>> Each channel with fuse or PTC for protection, spare fuses included>> AC power LED indicator>> Cooling by free air convection>> 100% full loading burn-in test>> Unit maintains camera synchronization>> 3 years warranty Technical parameters < STD Series Box-Type CCTV  Power Supply Specifications MODEL STD-40T-60-4 STD-40T-120-9 STD-40T-250-18 STD-40T-350-18 OUTPUT Output voltage 12V 12V 12V 12V Channel of output 4CH 9CH 18CH 18CH Output current 1.25A*4 1.1A*9 1.15A*18 1.5A*18 Output current
