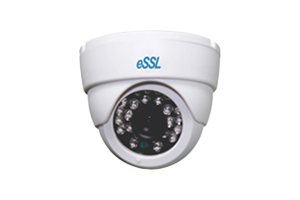

    CCTV HD

    CCTV HD

    Get Latest Price
    • Supply TypeManufacturer, Exporter, Supplier
    • Preferred Buyer Location All over the world

    Traditional analog system has drawback in transmission range and distance over which video is transmitted. Demerits in the system gave rise to AHD series of analog cameras. The term AHD refers to....
    View More Details
    Send Enquiry

    Company Information

    Tuctec Biometrics
    location Dubai
    View Number
    • calendar Member Since 7 Years
    • building Nature of Business Supplier

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details
    View Company Details

    • Product Details

    • Company Details

    no_img_icon

    Traditional analog system has drawback in transmission range and distance over which video is transmitted. Demerits in the system gave rise to AHD series of analog cameras. The term AHD refers to “Analog High Definition “which enables migration from analog to Analog high definition.



    AHD Solutions supports video transmission over traditional 75-3Coaxial cable up to 500 meters. AHD series carry forwards the some functionalities of analog system which in turn makes it a future proof solution.



    • Product Overview
    • Parameters

      • Power Sytem: PAL/NTSC
      • Sensor: SONY
      • Active Pixel: 1280 x 720
      • SYNC: Internal
      • Resolution: 720P
      • Video Out: AHD/CVBS, PAL/NTSC
      • Minimum Illumination: 0.01 Lux (F1.2)
      • Gama adjust: 0.45
      • Lens Mode: DC/Manual
      • Electric Shutter: 1/50s-1/50000s ; 1/60s-1/50000s
      • S/N Ratio: 50dB (min)(AGC closed)
      • 3D-NR: OFF/LOW/MID/HIGH
      • 2D-NR: OFF/LOW/MID/HIGH
      • White Balance: ATW/AWC-SET/Indoor/
      • Outdoor/Manual
      • AGC: Level 0-15
      • BLC: BLC/HCL/OFF
      • D-WDR: OFF/ON(Level 0-8)/Auto

    Optional Features:
    • Lens: 3.6 mm (6mm optional)
    • Sens-UP: X2-X30
    • Mirror: OFF/Mirror/V-Flip/Rotate
    • Motion Detection: 4 areas optional
    • Day/Night: Auto, Color, B/W, Ext
    • Privacy Zone: 4 areas optional
    • Defoq: OFF/AUTO
    • Power Input: DC12V ± 1V
    • Power Dissipation: 70mA
    • Operating Temperature: -10°C~ +60°C
    • Operating Humidity: Less than 85% RH
    • Dimension (LxWxH): 38 x 38 x 1.6
