CCTV Miniature Slip Rings

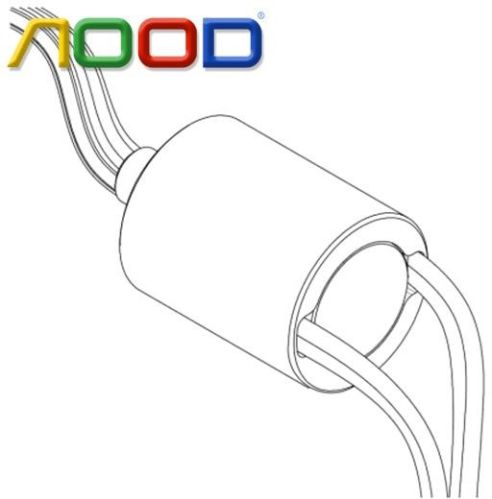

SRC08-04A miniature slip ring is especially suitable for small or miniature rotary system with 4 circuits, mainly be used for transmitting micro voltage, high frequency, EMF, thermocouple, computer signal, Strain gauge, current signal, Inter Bus, Profibus, RS422, RS485, PLC and other low controlling signals. SRC08-04A’s diameter is 8mm, using gold on gold contact material and designed highly-precision.
The series adopt double precision roller bearing and have a major characteristic of low torque, low contact resistance, long service life and reliable operation. Metal of anti-corrosion surface or plastic of high temperature resistant is option for housing and rotating axis, which can satisfy different applications from different customers.
Advantage
◆ Compact structure
◆ Gold-gold contacts
◆ Low torque
◆ Low electrical noise
◆ Low contact resistance
Option
◆ Wire length, terminal connector and heat-shrinkable sleeve
◆ Housing material
◆ Seal or protection grade
◆ Working temperature
◆ Outlet direction of rotor and stator
SRC08-04A Specification
◆ Circuits: 4 circuits
◆ Operating Speed: 300rpm
◆ Working Temperature: -20℃~ +80℃
◆ Working Humidity: 60%RH or higher
◆ Voltage Rating: 240VAC/DC or higher
◆ Current Rating: 2A per circuit
◆ Dielectric Strength: 500V@50Hz between each circuit
◆ Insulation Resistance: 1000MΩ@ 500VDC
◆ Electric Noise: ≤1mΩ
◆ Contact Material: Gold on Gold
◆ Lead Wire Size: Teflon® AWG30, silver plated copper UL
◆ Lead Wire Length: Standard 300mm (11.811inch)
◆ Housing Material: Metal /Plastic
◆ Protection: IP54 or higher
SRC08-04A miniature Slip Rings Application:
◆ Military equipment
◆ CCTV, Monitor, Subsea camera, Surveillance
◆ Manufacturing and process control equipment
◆ Medical equipment
◆ Electrical testing equipment
◆ Robotics, Manipulator
◆ Closed-circuit monitoring, Spherical head, Monitor
◆ Radar communication equipment
◆ Automatic door, Revolving door
◆ Automatic curtain
Please contact us if any special applications, our sales engineers will provide you recommendation and customization.
