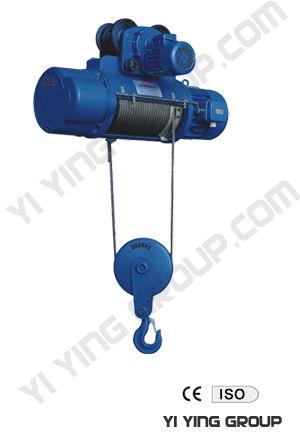

Cd1 Md1 Electric Hoists, Low Headroom Hoists

We offer cd1 md1 electric hoists, low headroom hoists.
1.description
type cd1(md1), wire-rope electric hoist is a kind of small-lifting equipment, it can be mounted on single beam overhead crane, gantry cranes, jib type.cd, electric hoist as only one normal speed which can satisfy normal application. Md1 has two speed. It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops, essentially in raising working efficiency and improving working conditions.
2.features
a. 1)condition: new
2)certificate: ce, iso
3)voltage: customize
4)contact: sales1 at yiyinggroup dot com
5)sling type: chain
6)capacity: 200000 sets/year
7)cover: all steel construction
8)high strength alloy load chain
9)forged alloy steel hooks
10) fully enclosed gearing
b.
1)rope guide, 2)power-off protection, 3)exhaust fan, 4)horizontal type is available, 5)remote control (available), 6)capacity t: 0.5-50, 7)overload limiter 8) work class:m3, m4
3.parameters
　　model 　　0.25 ton 0.5ton 1 ton 2 ton 3 ton 5ton 10ton
　　capacity ton 　　0.25-10
　　standard lift m 　　3-9 　　6-12 　　 　　 6-30 　
　　lifting height m/min 　　　　88/0.8 　　88/0.8 　　77/0.7
　　running speed m/min 　　20/30
　　wire rope type 　　6*19-3.6 　　6*37-4.8-180 　　6*37-7.4-180 　　6*37-11-155 　　6*37-13-170 　　6*37-15-200 　　6*37-15-200
　 I beam track type 　　16-22b 　　16-28b 　　16-28b 　　20a-32c 　　20a-32c 　　25a-63c 　　28a-63c
　　loop track minimum radius m 　　0.8 　　1.5 　　1.5-4 　　2-4 　　2-4 　　2.5-5 　　3.5-9
　　voltage customize
