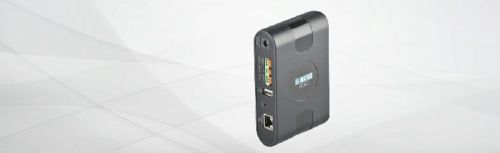

COSEC PANEL LITE, Certification : CE RoHS

Get Latest Price

CertificationCE and RoHS
Aux-Out PortForm C and SPDT Relay (Max 5A@24 VDC or 5A@230 VAC)
Network modeUses Feature and Capacity Enhancement for Access Control with Connection to Server
MountingDin Rail and Box (Optional)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Matrix Comsec Pvt Ltd.

Makarpura, Vadodara, Gujarat

View Number

Member Since 15 Years
Nature of Business Retailer
Year of Establishment 1991

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

CertificationCE and RoHS
Communication InterfaceEthernet or RS-485 (10/100 Mbps on Ethernet)
SoftwareBuilt-in Interface in Standalone Mode with Door Controller
Maximum Door Controllers255
BuzzerYes
Standalone modeUses built-in GUI to Control Door Controller and Users
USBOne USB Port (for Data Transfer and for 2G-3G/Wi-Fi Dongle)
Battery BackupNo
Input PowerExternal Power Adapter (12VDC @ 2A)
Number of Users25,000
Door Controllers on RS-48532
Humidity5% to 95% RH Non-condensing
Aux-Out PortForm C and SPDT Relay (Max 5A@24 VDC or 5A@230 VAC)
MountingDin Rail and Box (Optional)
Events Buffer5,00,000
LEDAvailable for Power, Status and Alarm
Operating Temperature-10°C to + 55°C
Network modeUses Feature and Capacity Enhancement for Access Control with Connection to Server
Door Controllers on Ethernet255
Aux-In PortYes, One Port Available

OVERVIEW

COSEC SIGMA is an intelligent device used for access control application. It works in two different architectures. In Network Architecture, COSEC SIGMA acts as a bridge between the controllers and COSEC. In Standalone Architecture, it works independently without requiring any server. It can manage 255 COSEC door controllers and 25,000 users from its UI.
