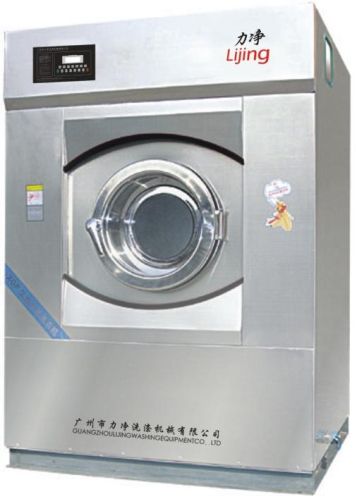

CE Approved 70kg Automatic Industrial Washer Extractor (laundry Equipments)/industrial Washing Machine

A. Full-suspended Automatic industrial washing and dewatering machines in which inner and outer cylinder interface adopt a face to face mode can effectively prevent accidental damage to cloth and leather;
B. It adopts SUS304 stainless steel panels and inner pot for longer service life;
C. Liquid cylinder is with a special anti-corrosion treatment,very durable;
D. The whole washing tank system is installed suspended on the spring and damping devices,shock absorption is up to 95%,and without foundation required when using;
E. It is with automatic detergent separation container,neither washing powder accumulates nor the washing additives can not fully dissolves and then rot the colth and leather;
F. It is fully controlled by computer,with frequency to adjust the speed, with man-machine conversation to adjust washing program,with clear LCD screen display.With failure and functional self-checking system to make it easier to maintain;
G. Electrical control components all adopt high-quality components,motors adopts high-quality special motor.
Mode
XGQ-100F
Washing Capacity(kg)
80-100
Rolling Container Dimension (mm)
1200*850
Rolling speed(r/min)
30/650
Rated Voltage(v)
380
Motor Power(kw)
7.5
Frequency Converter power(kw)
11
Diameter Of Hot water pipe(inch)
2
Steam Inlet(inch)
1
Diameter of cold water pipe(inch)
2
Steam pressure (mpa)
0.3-0.5
Consumes proportion of steam(kg/kg)
0.9
Air pressure(mpa)
0.45-0.6
Dimension(mm)
2027*1786*2112
Total weight(kg)
3500
