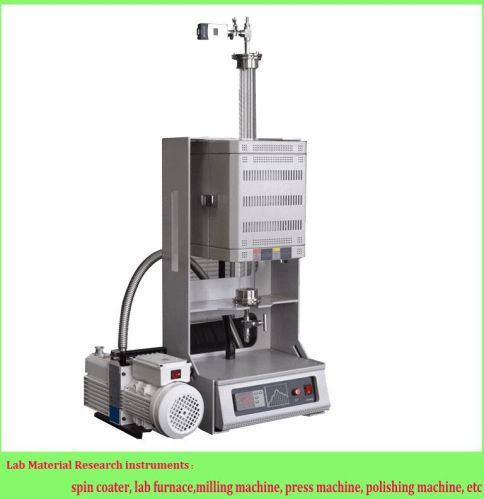

CE Certificated Vertical Tube Furnace

We offer Ce Certificated Vertical Tube Furnace.
Outstanding features of the vertical tube furnace
1. The tube furnace is designed for calcining inorganic compound with better uniform temperature esp. Excellent for preparing LiIon battery cathode materials with conductive coating, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory. Also can be used for fluidized bed research.
2. Double shell casing with three cooling fans.
3. High purity Alumina fibrous insulation for max. Energy saving.
4. The furnace can be tilted up to 30o by electric lift.
5. Split cover enable faster cooling and easy operation.
Technical parameters of the vertical tube furnace
Model CY-O1200
Limting temperature 1200�
Usable range 1150�
Heating rate suggestion 0-20�min
Temperature zone single
Temperature accuracy ±1�
Chamber size and material OD: 25mm (or 50mm); ID: 20mm (or 44mm); Length: 610mm, Quartz tube (included)
Heated length 200mm
Heating element aludirome
Thermal couple K type
Rated power 1.2KW
Working voltage AC 110-480V 5060HZ
Temperature control PID automatic control via SCR power control
Heating curves 30 steps programmable
Preset curve 1
Chamber materials alumina fiber
Constant Heating Zone 100mm
Warranty 12 month (exclusive wearing part)
