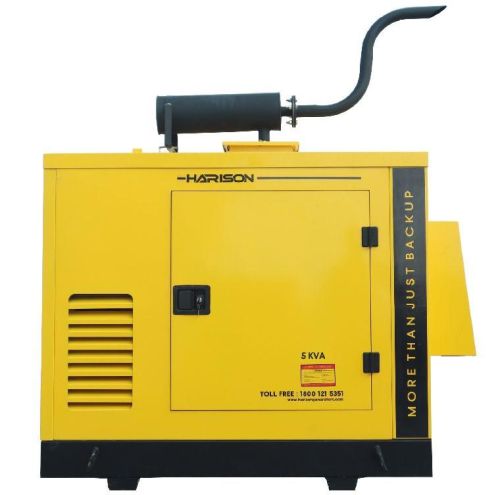

Harison 5 KVA Diesel Generator, Certification : CE Certified

Name: 5 KVA Diesel Generator
Brand: Harison
Price: 153400 INR
Availability: InStock

₹ 1.53 Lakh / Piece

Company Information

5.0/5

(1)

Ask for more detail from the seller

Report incorrect details

Details :

Using world renowned brand of “Kohler Engines”
Using NSM Alternators (Itlay)/Equivalent make Branded Alternators.
Designed for Easy Access for maintenance.
Best in Class Aesthetics
Nine stage phosphate dipped tank process, and powder paint finish provides excellent anti corrosion and UV resistance for the canopy.

Typical Appliance Configuration

ENGINE
GENSET	5KVA
GENSET MODEL	HG5KVA
RATING @.8pf	5KVA
PHASE	Single
Control Panel	Manual/AMPS
Genset Dimensions L X W X H(mm)	970 X 650 X 780*
Noise Level(1M dba)	<75
Fuel Tank Capacity(Lit)	15
Weight (kg)	215
ENGINE Make	KOHLER
ENGINE MODEL	HGKD441
Type	Direct Injection, 4 Stroke, Diesel
Cooling	Air Cooled
Engine Aspiration	Natural
Rated Speed(RMP)	3000
Maximum Power kWm(HP)	6.1(8.18)
Displacement(cc)	441
Bore X Stroke mm	86 X 76
Compression Ratio	20.3:1
Governer Type/Class Of Governing	Mechanical/A2
Air Cleaner Type,Qty	Dry,1
Lub Oil Sump Capacity(Lit)	1.5
Engine Electrical System	12 V
ALTERNATOR SPECIFICATIONS
ALTERNATOR MAKE	NSM / Equivalent
Voltage(Voltes)	230
Insulation	Class H
