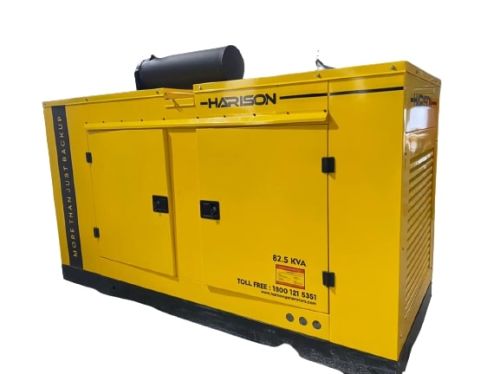

Contact SupplierHarison 82.5 KVA diesel generator has 4 cylinder turbo charged diesel engine. We have selected the technologies that not only perpetuate durability, but also enhance on-site supportability and usability. Harison generators offer proven engine platform to stand the test of time. The added benefit to this model of 82.5 KVA diesel generators lies in its capability to support heavy duty machines in industries and also for high power commercial and office building usages.
Key Features :
| GENERATOR SET SPECIFICATIONS | TECHNICAL SPECIFICATIONS | |
|---|---|---|
| KVA | 82.5 | |
| PRIME POWER RATING | KW | 66 |
| PHASE | NO. | 3P |
| RATED CURRENT | AMPS | 112 |
| GENSET MODEL | HG82.5KVA | |
| VOLTAGE | VOLTS | 415(3PHASE) |
| POWER FACTOR | 0.8 | |
| FUEL CONSUMPTION | 100% LOAD | 11.4 |
| 75% LOAD | 9.5 | |
| BATTERY STARTING VOLTAGE | VOLTS | 12V DC |
| ENGINE SPECIFICATIONS | ||
| ENGINE MODEL | HG6P7R8M | |
| CAPACITY OF ENGINE | CC | 3707 |
| RATED OUTPUT @ 100% LOAD | KWM/BHP | 104 |
| NUMBER OF CYLINDERS | NUMBER | 4 |
| NO. OF STROKES | NUMBER | 4 |
| BORE * STROKE | MM | 105*118 |
| RATED SPEED | RPM | 1500 |
| COOLING SYSTEM | LIQUID COOLED WITH IC | |
| TYPE OF GOVERNER | MECHANICAL | |
| GOVERNER CLASS | A1 | |
| BATTERY CAPACITY | AH | 120 |
| OVERLOAD CAPACITY | PERCENTAGE | 10% OVERLOADING IS ALLOWED |
| ALTERNATOR SPECIFICATIONS | ||
| MAKE | CROMPTON GREAVES/LEROY-SOMER | |
| RATING | KVA | 82.5 |
| POWER FACTOR | 0.8 | |
| TYPE | BRUSHLESS-1P23 | |
| VOLTAGE, VOLTS | 230(1 PHASE)/415(3 PHASE) | |
| RATED SPEED | RPM | 1500RPM |
| FREQUENCY, HZ | HZ | 50 HZ |
| VOLTAGE REGULATIONS | +/-1% | |
| CLASS OF INSULATION | H-CLASS | |
| CONTROL PANEL | CONTROL PANEL WITH BOTH AMF AND MANUAL OPTIONS | |
| ACOUSTIC SPECIFICATIONS | ||
| NOISE LEVEL | DB | 75DBA @ 1 METER DISTANCE |
| LENGTH | MM | 2800 |
| BREADTH | MM | 1150 |
| HEIGHT | MM | 1540 |
| FUEL TANK CAPACITY | LITRES | 150 |
| APPROX NET WEIGHT | KG | 1300 |
