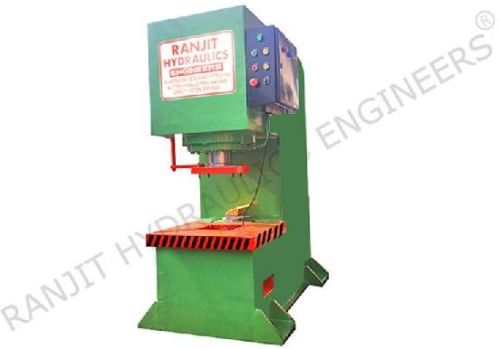

1000-2000kg C-Frame Hydraulic Press, Certification : CE Certified, ISO 9001:2008

Get Latest Price

Automatic GradeAutomatic
Driven TypeHydraulic
CertificationCE Certified, ISO 9001:2008
ConditionNew
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Ranjit Hydraulics Engineers (Regd.)

Industrial Area A, Ludhiana, Punjab

5.0/5

(1)

View Number

Member Since 10 Years
Nature of Business Manufacturer
GST No. 03BLAPS5656Q1ZI

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

CertificationCE Certified, ISO 9001:2008
ApplicationFor Pressing Metal Sheets
Availability1000-2000kg
Country of Origin440V
ConditionNew
Automatic GradeAutomatic
Power1-3kw, 3-6kw, 6-9kw
Driven TypeHydraulic
Total Carbohydrate2years

Our C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC). C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.
Note

C-Frame hydraulic press can be used for simple pressing / coining / stamping / beinding etc. and also for die cushion, induction table & rubber molding.
In case of die-cushion, die cushion cylinder with other system will be provided.
In case of rubber molding, heating provision in working platen can be provided.
According to the speed of the press, Motor H.P. can be changed
C-Frame hydraulic presses can be supplied with
Die Cushion / Ejection
with pressure transmitter for precise pressure sensing
with load cell & L.V.D.T. for precise load & stroke control sensing
Hydraulic Press over & above the specified capacity.

Technical Specification

Model No	Cap. (Ton)	Platen Size (mm)	Day Light Gap (mm)	Stroke (mm)	Bore/ Ram Dia (MM)	Pressure KG/CM²	Motor H.P
RCFP 10	50	500 X 400	250	200	150	160	3
RCFP 25	75	600 X 500	300	250	180	170	3
RCFP 50	100	700 X 500	400	300	200	210	7.5
RCFP 75	150	800 X 600	400	300	250	210	7.5
RCFP 100	200	900 X 700	500	400	300	210	10
RCFP 150	250	1000 X 800	600	450	350	215	15
RCFP 200	300	1000 X 1000	750	500	400	210	15
RCFP300	400	1200X1000	800	500	500	210	20
