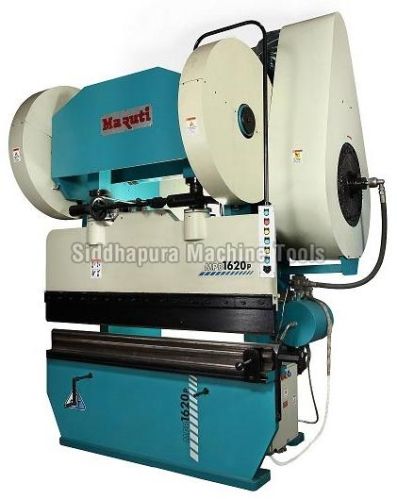

Mechanical Press Brake Machine, Certification : CE Certified

CertificationCE Certified
Power3 phase
Total Carbohydrate1year
Country of Origin400/440 volts
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

CertificationCE Certified
Total Carbohydrate1year
Country of Origin400/440 volts
Power3 phase
No. of cycles50 cycles
MaterialMetal

The Mechanical Press Brake Machine is of robust fabricated steel construction of rigid and interlocked design. It is strain free and supports the ram and bed against undesired deflection under permissible loading condition. Made from steel plates of suitable thickness and machined for straightness and parallelism of the working surfaces. Ram is guided and supported throughout the stroke by accurately machined guide ways. Power is transmitted through two individual gear drives for uniform load distribution throughout the length. We are known as one of the best Press Brakes Manufacturer and not only this we have achieved success through our out of the world machines so we have become one of the most eminent Hydraulic Press Brake Supplier in India.

Features

Foot pedal and die block linking link
Fly wheel and gear guard
Self lubrication system
Motor pulley stroke counter
Motor mounting bracket

Details

All dimensions are in mm
Power supply 400/440 volts, 3 phase, 50 cycles
We reserve the rights to alter specifications without notice
Stringent quality checks for easy and smooth operation

Options

Mounted black gauge
Self lubrication
Motor mounting bracket
Motor pulley

Technical Specifications

Model	Cap. in Tons	Bending Cap. (Length × Thick.)	Dist. Between Housing	Stroke Length	Stroke per Minute	Ram Adj.	Shut Height Ram Stroke Down	Table Height	Depth of Throat	Main Motor H.P.	Ram Adj. Motor H.P.	Die Space (Length × Width)	Machine Diam. (L × W × H)	Approx. Weight Kgs.
MPB215	20	1525 × 1.6	990	50	30	40	200	760	240	3	Manual	1525 × 125	1800 × 1100 × 2300	2150
MPB220	25	2030 × 1.6	1220	50	30	40	200	760	240	5	1	2030 × 150	2300 × 1150 × 2300	2450
MPB620	65	2030 × 4	1220	75	30	75	220	800	300	7.5	1.5	2030 × 200	2300 × 1150 × 2300	3300
MPB825	80	2540 × 4	1700	75	30	75	220	800	300	10	1.5	2540 200	2900 × 1500 × 2850	5500
MPB1025	100	2540 × 5	1700	75	25	75	275	800	300	15	2	2540 × 254	2900 × 1800 × 3400	6900
MPB1031	100	3125 × 4	1700	75	25	75	275	800	300	15	2	3125 × 200	3400 × 1800 × 3400	7800
MPB1225	120	2540 × 6	1700	75	25	75	275	900	300	20	2	2540 × 254	2900 × 1800 × 3400	8300
MPB1231	125	3125 × 5	1700	75	25	75	275	900	300	20	2	3125 × 254	3400 × 1800 × 3400	8900
MPB1420	140	2030 × 8	1420	75	25	75	275	900	300	25	2	2030 × 254	2600 × 2160 × 3200	6500
MPB1531	150	3125 × 6	1900	75	25	75	275	900	300	25	2	3125 × 254	3400 × 1800 × 3400	9400
MPB2031	200	3125 × 8	1900	75	20	75	275	900	300	30	2	3125 × 254	3400 × 2000 × 3600	12500
