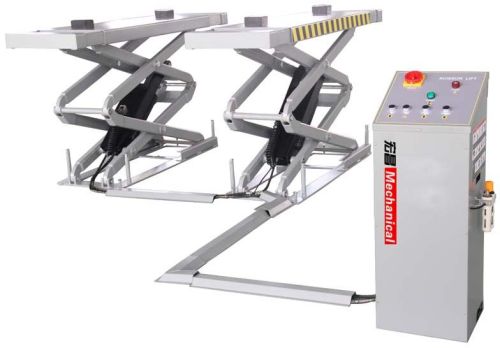

Ce Lifting Capacity 3200kg In-ground Mounted Scissors Lift

We are offering ce lifting capacity 3200kg in-ground mounted scissors lift.
Specifications:
1. In-ground installation;
2.double cylinder structure,330mm under trench installation;
3.aluminum shell motor prevents overheated;
4.two platforms can extend for different length of vehicles;
ce lifting capacity 3200kg in-ground mounted scissors lift
technical specification :
lifting capacity ---------------------------------3200kg
lifting height-----------------------------------2030mm
minimum height-------------------------------- 330mm
overall length ---------------------------------1440mm
overall width ----------------------------------2010mm
runway length--------------------------------1440mm
runway width----------------------------------550mm
runway span-----------------------------------910mm
motor power---------------2.2/2.2/3.0kw (optional)
power supply--220v/240v/380v/415v (optional)
packing size -------------------- 1700* 570* 440mm
net weight----------------------------------------785kg
gross weight------------------------------------800kg
main features:
1.with 24v limit switch;
2.safety signal when lowering to 500mm above ground;
3.operating control system with 24v safety voltage;
4.pass 115% dynamic and 150% static loading test.
5.ce approved.
