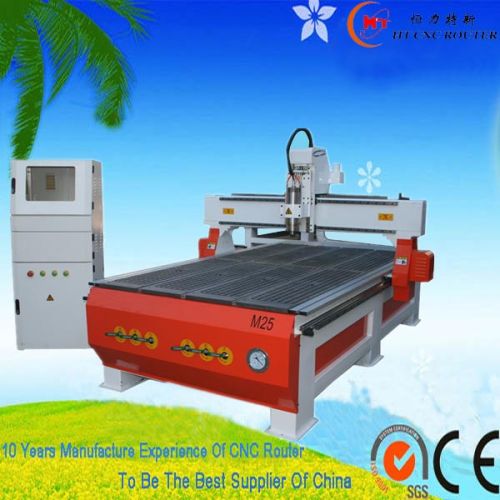

Ce Sgs Woodworking CNC Engraver

We are offering water cooling good quality ce sgs woodworking cnc engraver.
application:
woodworking: three-dimensional wave plate processing, milling engraving of cupboard door, craft wood door, paint-free door, screen and craft window.
feature:
1. Imported linear guide rail, double-side four ball slider, hight loading capacity, smooth operation, high
precision, long lifetime. Imported ball screw, accurate engraving.
2. Optional spindle are imported nsk bearing, high speed water cooling spindle. 6.5kw air cooling
spindle or 4.5 kw water cooling spindle with stable performance.
3. Computer online ncstudio control system, unique intelligent forecasting algorithm. Fully elaborate the
proficiency of motor, realize fast speed processing, twist and straight lines work at the same time and twist
lines are perfect.
4. Good software compatibility with type3actcamcastmateartcut, etc.
5. Six zones vacuum table can absorb different sizes of boards.
6. Adopt high speed stepper motor and drive. Y axis adopts double motor drive. Max rapid travel rate can, reach 25mmin and it can be increased with the vigorous cutting spindle.
description & specification:
x working area 1300mm
y working area 2500mm
z working area 200mm
table size 1300x2500mm
traveling positioning accuracy ±0.05mm
repositioning positioning accuracy ±0.05mm
table surface by suction (t-slot or suction+ t-slot optional)
x,y,z structure xy gear wheel, z ball screw
max. Power consumption(without spindle)1.84kw
max. Rapid travel rate 50000mmmin
max. Working speed 25000mmmin
spindle power motor 4.5kw
spindle speed 0-24000rmin
drive system stepperservo
working voltage ac380v60hz
command g-code.
