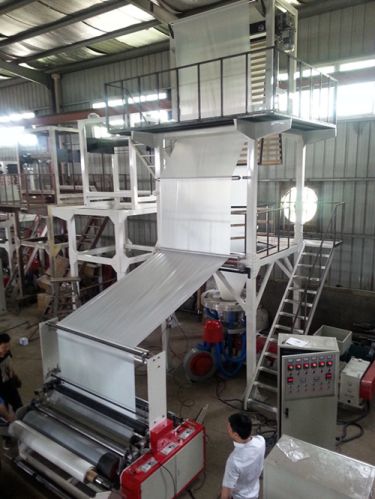

CE Standard Rotary Die Double Winder Film Blowing Machine

We are offering CE Standard Rotary Die Double Winder Film Blowing Machine.
Specification:
1>.Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrogen and processed in a precision way, hence it is sound in hardness, durable in corrosion resistance.
2>.The specially designed screw is of sound quality in plasticizing which helps increase the production capacity.
3>.It is applied to blowing the plastic films like ldpe, hdpe, lldpe,
4>.It is widely applied to producing the packing bags for foodstuff, clothing rubbish, vest ones, and industrial packaging and etc.
5>.The machine body is channel steel frame with single rolling friction, which is suitable for blowing high-low pressure PE industrial film and agricultural mulch film.
Main specification of machine:
1.Raw Material: HDPE,LDPE,LLDPE
2.Screw Diameter: 75mm
3.LD ratio: 28:1
4.Max Lay flat width: 1500mm
5.Thickness : 0.008mm-0.1mm tolerance:  ≤（±5%）
6.Production capacity: 100kgh (according to the material, width and thickness of film)
7.Take-up speed: 10-60mmin
8.Power supply: 380v, 50Hz 3 Phase37kw
9.Heater material: stainless steel
10.Machine dimension(L*W*H): 5*3.5*6.5M
11.Weight: 4T
