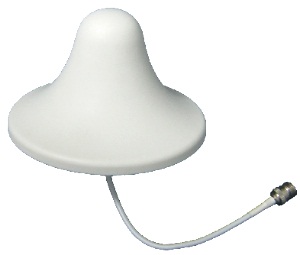

Ceiling Mount Antenna

We offer ceiling mount antenna.
Frequency range:800-960，1710-2500mhz
average gain:1-3dbi 800-960 mhz
2-4dbi 1710-2500mhz
vswr:1.5 : 1
impedance:50ω
max input power:100w
polarizationapplication:2g3g mobile network
frequency ran:vertical
hpbw:360
radome color:white
radome dimensions :180×110 mm
cable and connector:n female
operating temperature:- 30℃ to +40℃
storage temperature:- 40℃ to +60℃
net weight:210g
free sample
price and other details to be agreed
widely used in wireless equipments of gsm, cdma, wcdma, cdma2000, td-scdma, lte, dvb-t, gps, gpsone, glonass, beidou, wi-fi, wimax, bluetooth, isa100, zigbee, wireless hart, wia-pa, etc. Such as mobile phone, pad, router, wireless surveillance, wireless security, industrial wireless networks, navigation device, vehicle wireless device, etc.
