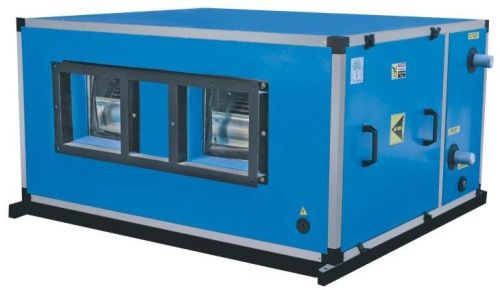

Ceiling Mounted Unit

The unit is prepared as per the customer's requirement, 1000 cfm to 40000 cfm.

Construction

• The unit is prepared in heavy duty extruded aluminum profile with without thermal break internal coving section.
• The unit panels are filled with 25 or 50mm thick pressure injected polyurethane foam, having 38/40 kg /m3 density.
• Various options such as pre-coated galvanized sheets, plain galvanized sheets, aluminum ss 304 ss 316 sheets in various thicknesses are available for inner outer skin of double skin panels.
• Forward curved blowers for normal applications and backward curved for high resistance application.
• Drain pan made of ss 304 with dual slope to facilitate immediate discharge of condensate.
• Base frame is made of galvanized steel with die cast aluminum joints having lifting holes.
• Access doors are provided with hinges locks made of self extinguishing nylon for perfect air tightness.

Option available

• Filter sections for eu-5, eu-7, in rigid / bag construction.
• Humidification, pre / re heat package.
• Mixing box with fresh / return air dampers single.

Applications

• Comfort air conditioning.
• for schools, studio, airports,
• Laboratories, multiplexes, offices,
• Institutional buildings and hotels.
