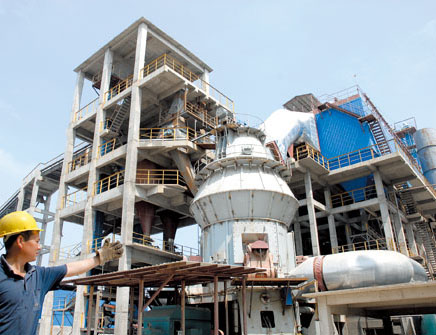

Cement Clinker Grinding Mill Plant, Production Capacity : 50-1500TPD

1.energy-saving about 20%~35%.
2.most professional mini cement grinding mill plant .
3.stable performance
4.most competitive price
this type mini cement grinding mill plant is mainly used for grinding the material with middle and low hardness, below 6% moisture, and the material should be non-explosion and non-flammability, such as: calcite, chalk,limestone, dolomite, kaolin, bentonite, steatite, mica, magnetite,iolite, pyrophillite, vermiculite, meerschaum, attapulgite, diatomite,barite, gypsum, alunite, graphite, fluorite, phosphate ore, potassiumore pumice, etc
working principle
1)raw material which has been crushed to the size specified is elevated into a hopper from which the stuff is loaded. And then through the vibrating feeder ,the materials will transferred evenly and continuously into the mini cement grinding mill plant grinding chamber for powder-processing. After this,the ground stuff is carried by the air from the blower into the classifer for regrinding.the set's airflow system is closely sealed up and circulated under the condition of negative and positive pressure.
2) the mini cement grinding mill plant is driven by rotation of the central axle through decelerator ,with the up end of the axle connecting to a quincunx-rack upon which the grinding equipment is fixed. The whole set equipment turns together with the axle along the grinding ring while the rollers rotate driven by the fractional force .a set of shovel are installed at the lower end of the quincunx-rack.while turning together with the rollers ,the shovels shed the stuff onto the gap between the rollers and the ring ,and that's where the stuff layer forms .the rotating rollers ,while turning together with the ring ,grind the stuff layer into powder.
3) the turning speed of the impeller can be adjusted to the requirement of the fineness of powder products .
