Machine purpose

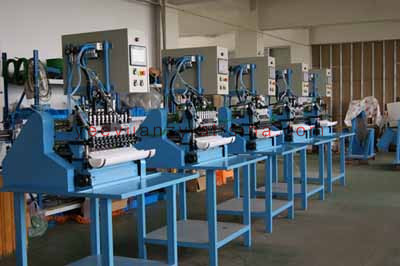

this machine is especially designed for polish the carbide wire drawing dies reduction angle and back relief angle.
This new generation lapper have more efficient and accurate capability with ten lapping head working together ,
meanwhile it is easy to operation and low cost of maintance .
The working range is wild from 0.10mm to 5.5mm which adequate for polishing both wet drawing dies and dry drawing dies .
Characters
★ higher efficient with tens dies lapping one time
★ automatic feeding and plc control
★ easy for operation and lower maintance cost
★ stable quality performance
equipment parameters
wire dies hole diameters : 0.10mm to 5.50mm
wire dies case dimension : standard as ø28x15 and ø42x28 ,tailor design according to your request also available
lapping angle capability : according to your request , typically from 7°to 30°
working pin size : ø3.0mm or ø5.0mm or ø8.0mm
equipment dimension : 910mm*770mm*1065mm working table:1000mm*1000mm*850mm
