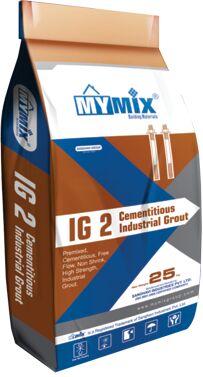

Cementitious Industrial Grout

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

IG 2 (Cementitious Industrial Grout) Product Description: "MYMIX - IG 2" Premixed cementitious free-flow Non-Shrink high strength industrial grout, which is essential to withstand static and dynamic....

View More Details

Send Enquiry

Company Information

Sanghavi Group

Makarba, Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

IG 2 (Cementitious Industrial Grout) Product Description:

"MYMIX - IG 2" Premixed cementitious free-flow Non-Shrink high strength industrial grout, which is essential to withstand static and dynamic loads. It is a unique product designed to give positive expansion in the plastic and hardened states, producing a low porosity high durability material. It is carefully designed very fine blend of Portland Cements, quartz sand modified with silica fume and expansive agents. The product is formulated to produce controlled expansion in the plastic state with low water mixing requirement to minimize segregation delivering high early strength and long lasting durability.

Suitable Substrates:

Machinery bases, Structural columns, pumps and accessory bases, anchor bolts, floor grids, crane tracks
Precast structural membrane and to joints, dowels, rail posts and sealing bolts, powder line stanchions.
General purpose grouting of narrow concrete cracks or gaps between concrete and metal structures
All horizontal ducts or concrete, in situ opened channels installation of pipe lines, cables, ducts and plastic conduits

Advantages:

Excellent fluidity for easy use
Easy to remove parts of structure
Quick strength achieving
Possibility for quicker loading

Dimensionally stable, needs no special treatment at opened ends, capping or edges
No Separation
High coverage and Economical

How to Apply:

Remove oil and grease from application surfaces and clean entire area with oil free compressed air
All metal components shall be de‐rusted and free of paints and oil
Remove excess water from voids and holes prior to grouting
Any standard grout pump can be used
Add 160ml to 180ml per kg of MYMIX IG2 Cementitious Grout.
Determine size of the pocket to be grouted
If the pocket depth is more than 5cm, add 30% pre‐washed, dry, coarse aggregates of size 4 to 8mm by weight
Do not pour from two sides
The materials should be quickly poured in order to avoid loss of workability
Strike off the exposed areas as you keep pouring the materials
Use wet hessian cloth or ponding water
If a damp hessian is used, curing for at least 7 days is necessary
Do not use vibrators for compaction of the material

Packing:

25 kg bag and Project packing of 40 kg bag is available on demand

Shelf Life:

Factory sealed bags are best before 12 months from the date of manufacturing in unopened condition stored in dry area

Technical Details: (As per IS 4031 part 5 & 6)

S . No	Testing Parameter	Specification
1	IG – 2 – Mixing Ratio	4.0 to 4.5 litre water for 25 kg Material Approx: 16 – 18 % by weight
2	Product Colour	Grey
3	Compressive Strength in Mpa
3.1	After 01 Day	13 Mpa
3.2	After 03 Days	24.5 Mpa
3.3	After 07 Days	46.7 Mpa
3.4	After 28 Days	68.25 Mpa
4	Settling time
4.1	Initial Setting time in Minute	145 min.
4.2	Final Setting time in Minute	270 min
5	Flexural Strength in Mpa	8.26 Mpa
6	Density in gm/cc
6.1	Loose bulk density	1.8 gm/cc
6.2	Compacted Density	2.23 gm/cc
7	Flow Distance in MM	20 – 30 mm
8	Chloride Content	NIL
