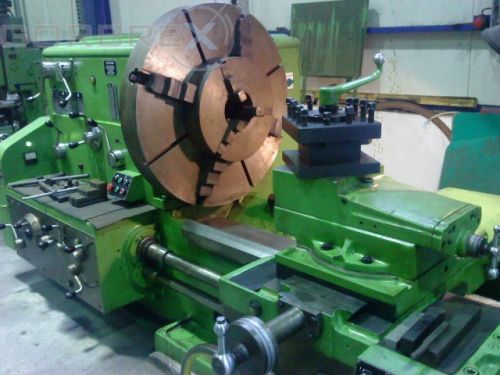

Metal Ryazan Center Lathe Machine

We are offering center lathe machine ryazan model: 1m65/5000.
manufacturer: ryazan - romania
model: 1m65/5000
new in: 2002
condition: very good, ready to work
max turning diameter over bed: 1 000 mm
max turning diameter over carriage: 650 mm
max turning lenght: 5 000 mm
spindel diameter: 85 mm
workpiece weight: 5 000 kg
spindle taper: 100 mm
number of stages of the slide unit:32
max longitudinal carriage feed: 3,05 mm/u
min longitudinal carriage feed: 0,20 mm/u
max cross feed: 1,04 mm/u
min cross feed: 0,07 mm/u
threads:
- metric 1 …120 mm
- cal 28 … ¼
- modul 0,5 …30 m
motor power: 22 kw
machine size:
- length: 8 050 mm
- width: 2 100 mm
- height: 1 760 mm
weight of machine : 15 650 kg
