Centreless Grinder Wickman 2J

Supply TypeSupplier, Importer, Trader
Preferred Buyer Location All over the world

Centreless Grinder Wickman 2J Centerless grinding is a machining process that uses abrasive cutting to remove material from a Workpiece. In the Centreless Grinding Machine Wickman 2J....

View More Details

Send Enquiry

Product Details

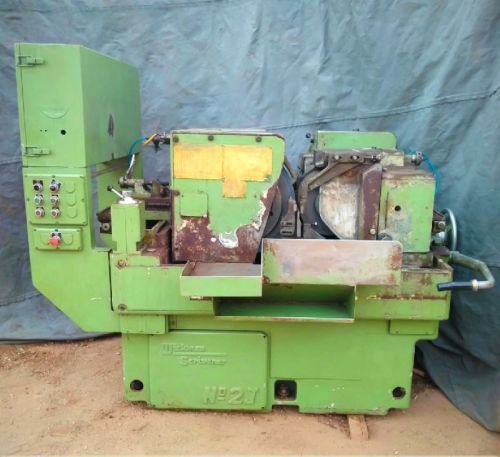

Centreless Grinder Wickman 2J

Centerless grinding is a machining process that uses abrasive cutting to remove material from a Workpiece. In the Centreless Grinding Machine Wickman 2J Workpiece is secured between two rotary grinding wheels of size 500 X 200 mm, and the speed of their rotation relative to each other determines the rate at which material is removed from the Workpiece.

Description:

Machine Type: Centreless Grinder

Machine Make: Wickman

Machine Model: 2J

Features: Ready to Use, Noiseless Spindles, High Accuracy.

Technical Specifications:

Make / Brand	Wickman Scrivener
Model	No. 2J
Grinding Capacity	6.35 - 127 mm
Max. Wheel Dia	500 mm
Wheel Width	200 mm
Max. Wheel Periphery Speed	6000 ft/min
Max. Wheel Spindle Speed	1150 RPM
Max. Dia. Drive Pulley	130 mm
Max. Dia Driven Pulley	165 mm
