Centrifugal Fans

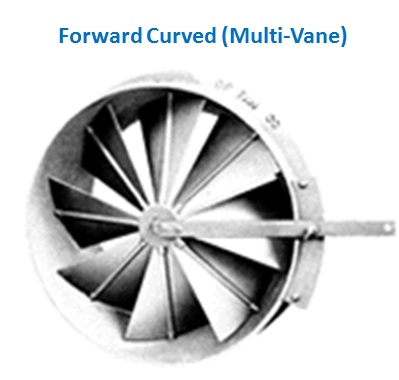

The major types of centrifugal fan are: radial, forward curved and backward curved

In centrifugal flow, airflow changes direction twice - once when entering and second when leaving (forward curved, backward curved or inclined, radial).

• Different Designs types are used to match System air flow and static pressure requirements.
• Centrifugal Fans used in higher pressure lower flow, corrosive, or material handling systems.
• The Inlet and Outlet Sizes decrease relative to housing diameter as the pressure developed increases.
• Generally outlet velocity Range of 1250 to 6000 FPM Outlet Velocity

• Backward Curved Centrifugals up to 20” SP
• Industrial Exhausters up to 46” SP
• Pressure Blowers up to 14” SP
• Turbo Pressure Blowers up to 100” SP
