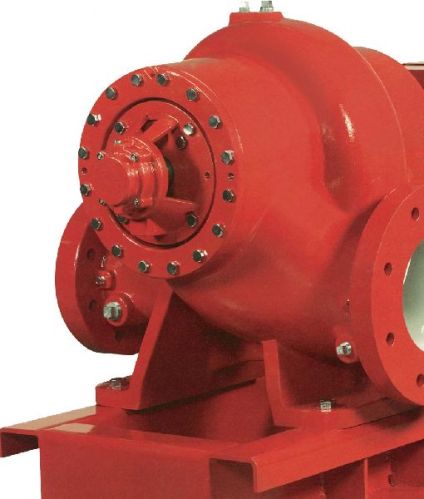

Centrifugal Fire Pumps Split Case

Features

• Volute type Thru-Bore Casing
• Horizontally Split Casing Design
• Efficiently Designed Shaft
• Frame-mounted Design
• Small Footprint ideal of retrofit
• Dynamically Balanced Double Suction Impeller
• Heavy Duty with Heavy Wall Thickness
• 100% Hydro static & Performance Tested
• Removable stu­ffing box

LIFECO GMAX® split case pump is a single-stage, Volute type Thru-Bore Casing pump. The axially split design allows easy removal of the top casing and access to the pump components (bearings, wear rings, impeller, and shaft seal) without disturbing the motor or pipe work. The independent bearing housing allows for ease of maintenance without removing the top casing. The double volute design reduces the radial load on the shaft, extending component life, minimizing vibration and providing quiet operation.
