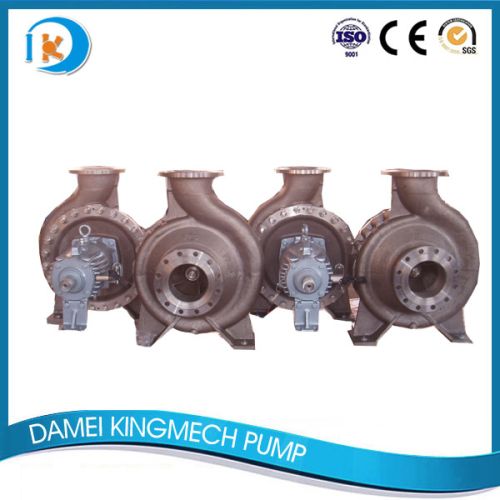

Centrifugal Horizontal Titanium Pump

We are offering centrifugal horizontal titanium pump.
Product details
performance range
type cmd pump are centerline-mounted single stage overhung end suction pump designed according to api 610.
Size: 1-16 inches
capacity: 0-2600 m3h
head: 0-300m
temperature: -80-300 °c
material: cast steel, ss304, ss316, ss316ti, ss316l, cd4mcu, titanium, titanium alloy, hastelloy alloy

structure:
frame plate
pumps bigger than dn80 adopt double casing, foot mounting, changeable and flushable gland. Compressible metal flat gasket is used to seal the clearance between frame plate and cover plate.
Flanges
suction is horizontal and discharge is vertical. Flanges are available for bigger orifice load and gb, din, ansi standard. Suction and discharge flanges can usually bear the same pressure.
Hydraulic balance and axial balance
bigger flange orifice ensures low flow rate.  design of impeller and frame plate ensures low noise. Single suction radially split impeller(type n impeller) has sealed passage. Inducer impeller and open impeller are available for  different specifications.
Changeable frame plate and impeller ring protect quick wearing area. Axial force gets balance with front ring or front rear ring with balance holes. Remnant axial force is balanced by thrust bearing.
Bearing and lubrication
bearing suspension is an entirety. Bearing adopts oil lubrication. Constant oil cup adjusts oil position automatically. Ring ensures sufficient lubrication when oil position changes so as to avoid partial heating due to  not sufficient lubrication,. According to the working condition, bearing suspension can be no cooling(with radiator), water cooling(with water cooling sleeve)and wind cooling(with fan). Bearing is sealed by piston anti-dust plate.
shaft sealing
