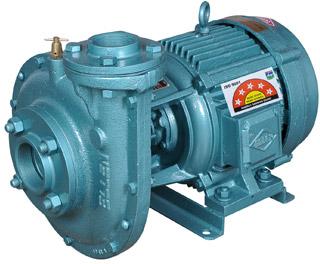

Centrifugal Monobloc Single Phase Pumps

Get Latest Price

Supply230 V / 50 Hz AC
Range0.5 HP - 3 HP
Head RangeUpto 27 m
DischargeUpto 700 LPM
Outlet Size25,32,40,50,65,75mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Send Enquiry

Company Information

Ellen Pumps

Takara Basthi, Secunderabad, Telangana

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Supply230 V / 50 Hz AC
DischargeUpto 700 LPM
Range0.5 HP - 3 HP
Outlet Size25,32,40,50,65,75mm
Head RangeUpto 27 m

Ellen Pumps offers a wide range of Single phase Monobloc pumpsets.These Pumps are manufactured as per Indian Standard IS:9079 and motor with IS 996 with strict quality control to ensure efficient & reliable operation.

MOTOR

PUMP

Totally enclosed, water filled, Squirrel Cage Induction motor.
Available in Single phase and Three Phase models.
Motors are designed to operate under wide voltage
- 160-240V in 1 Phase
- 160-440V in 3 Phase
Dynamically balanced rotor
- Vibration free, longer life and better efficiency
Rotor is coated with polyurethane paint for rust proofing
Stator & Rotor are vacuum impregnated and coated to ensure corrosion resistance
Stator body & Rotor shaft are fabricated in stainless steel for rust prevention and longer life
Specially designed thrust pad for longer life
Special water resistant PVC insulated high quality copper winding wire
Designed for easy rewinding with special T.O.Ps for winding protection

Designed for optimum efficiency and are energy efficient
High quality corrosion and abrasion resistant parts are made of stainless steel, high strength engineering polymers and special alloy materials.
High Operating efficiency of pump sets resulting in higher discharge rate and low power consumption.
High Quality abrasion resistant Noryl/Bronze type impellers used and are dynamically balanced.
Pump sets are very compact and slim and can be easily installed in narrow wells.
