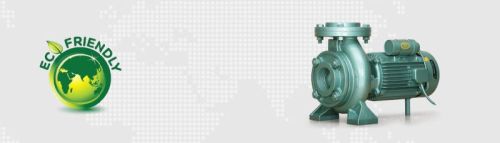

Centrifugal Monoblock Pump

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Salient Features Dynamically Balanced Rotor with Shaft and Impellers TEFC, Capacitor Start and Run Motor Built in Thermal Overload Protector (TOP) to protect the motor from burning Double Shield....

View More Details

Send Enquiry

Company Information

Innoteck Enterprises India

Peelamedu, Coimbatore, Tamil Nadu

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Salient Features

Dynamically Balanced Rotor with Shaft and Impellers
TEFC, Capacitor Start and Run Motor
Built in Thermal Overload Protector (TOP) to protect the motor from burning
Double Shield Ball bearing with life long lubrication
Sturdy motor design to withstand wide voltage
For various field conditions, pumps available in different voltage bandwidth
- Super low voltage = 100 V to 200V
- Single phase normal = 140 V to 250 V
- Single phase Special Design = 100 V to 300 V
- Special Design = 160 V to 420 V
High Head Low Discharge, Medium Head Medium Discharge and Low Head High Discharge options
All Models are available with Three Phase options

Application

Hotels, Hospitals and Apartments
Gardening & Fountain
Domestic and Minor irrigation

Performance Table

High Head - Low Discharge Series

Model No.	Motor Power KW / HP	Pipe Size in mm	Mtr	H-Head in Meters / Feet
			Mtr	4	6	8	10	12	14	16	18	20	22	24	26	28	30
			Feet	13	20	26	33	40	46	52	59	66	72	79	85	92	98
ITC 722	0.75 / 1.0	25x25	Q Discharge in Lph				100	95	95	95	95	95	80	48
ITC 732	0.75 / 1.0	32x25					120	115	110	109	107	103	102	98	90	65
ITC 1144	1.1 / 1.5	40x40				260	250	245	240	230	230	220	200	190	120
ITC 1554	1.5 / 2.0	50x40					255	255	250	250	240	240	230	230	220	175	110

Medium Head - Medium Discharge Series

Model No.	Motor Power KW / HP	Pipe Size in mm	Mtr	H-Head in Meters / Feet
			Mtr	4	6	8	10	12	14	16	18	20	22	24	26	28	30
			Feet	13	20	26	33	40	46	52	59	66	72	79	85	92	98
ITC 422 E	0.37 / 0.5	25x25	Q Discharge in Lph		99	97	96	95	92	68	36
ITC 422	0.37 / 0.5	25x25					140	134	120	90	60	35
ITC 744	0.75 / 1.0	40x40				260	250	230	220	175	80
ITC 1154	1.1 / 1.5	50x40				480	450	440	400	350	280	19-240
ITC 1155	1.1 / 1.5	50x50				530	500	470	410	350	290	19-230
ITC 1165	1.1 / 1.5	65x50				550	500	460	400	300	17-240
ITC 1555	1.5 / 2.0	50x50				430	390	350	315	280	240	190	140
ITC 1565	1.5 / 2.0	65x50				630	580	550	520	440	360	240
ITC 1576	1.5 / 2.0	80x65				630	570	510	420	270

Low Head - Low Discharge Series

Model No.	Motor Power KW / HP	Pipe Size in mm	Mtr	H-Head in Meters / Feet
			Mtr	4	5	6	7	8	9	10	11	12	13	14
			Feet	13	16	20	23	26	30	33	36	40	43	46
ITC 444	0.37 / 0.5	40x40	Q Discharge in Lph					300	280	250	240	108	120
ITC 755	0.75 / 1.0	50x50						420	400	340	300	270
ITC 1577	1.5 / 2.0	80x80				920	870	830	790	740	660	550	450
