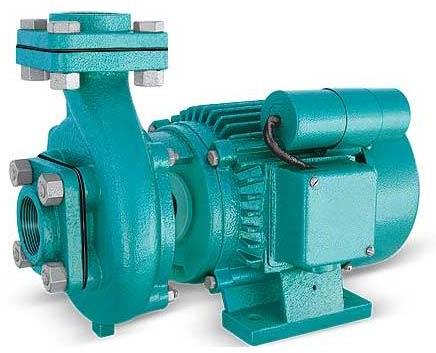

Centrifugal Monoblock Pump

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are engaged in offering Centrifugal Monoblock Pump to our clients in the global market. Our Centrifugal Monoblock Pump is ideally used to fulfill substantial water requirements. Made using....

View More Details

Send Enquiry

Company Information

Aqua Pumping Solutions

Sirsa, Haryana

View Number

Member Since 13 Years
Nature of Business Exporter
GST No. 06ANUPG6771D1ZQ

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are engaged in offering Centrifugal Monoblock Pump to our clients in the global market. Our Centrifugal Monoblock Pump is ideally used to fulfill substantial water requirements. Made using superior quality raw material, our Centrifugal Monoblock Pump provides reliable and efficient operation. With sturdy structure and efficient performance, our Centrifugal Monoblock Pump has gained much appreciation from clients all over the world.
Features

Available in single phase & in three phase
2880 rpm induction motor
Chamber is designed to give the best hydraulic efficiency and balance operation
Superior mechanical seal shaft for longer life and effective sealing
Air locking prevented by centre delivery casing
Totally enclosed and fan cooled electric motor
Capacitor start & run

Applications

Industrial & public water schemes
Domestic water supply
Drip sprinkler irrigation scheme
Fire fighting
Booster application cooling water circulation
Air conditioning plants
Dewatering of mines, offshore, platforms etc

Material of construction

Volute : cast iron
Flange : cast iron
Sealing : mechanical seal
Upper & lower housing : cast iron
Sealing : mechanical seal
Motor body : cast iron
Rotor shaft : MS

Specifications

Motor Body : Graded Cast Iron
Stamping : Electrical Grade Silicon Steel Sheet with 3.9 to 4.5 Watt loss/hourt
Rotor Shaft : Stainless Steel 420 H&T
Impeller : Graded Cast Iron and Dynamically Balanced
Ball Bearing : Reputed Make ZZ Ball Bearing
Seal : Monoblock Pump with Asbestos Gland Packing & Mechanical Seal
Winding : Super enameled EC Grade Copper Wire

Operating Parameters

Power (H.P.)	0.50 HP to 2.00 HP (240 V, 50Hz, A.C. 1 or 3 Phase)
Speed	2800 rpm
Discharge Range	27 LPM to 1440 LPM
Total Head Range	5Metres to 42 Meters
Pipe Size in mm	25 x25, 40 x 40, 50 x 50, 65 x 65, 75 x75
Sealing	Mechanical Seal

Note : These single impeller centrifugal monoblock pumps are used for Domestic water supply, Hotels Apartments, Gardens, small farms, Agriculture & industrial applications.
