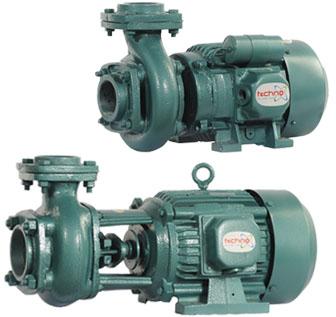

Centrifugal Monoblock Pumps

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product features Easy to install and low operating cost. Improved efficiency and minimal maintenance by having the set operated on a common Shaft. Dynamically balanced rotors and impellers....

View More Details

Send Enquiry

Company Information

Techno Industries Limited

S G Highway, Ahmedabad, Gujarat

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Product features

Easy to install and low operating cost.
Improved efficiency and minimal maintenance by having the set operated on a common Shaft.
Dynamically balanced rotors and impellers ensure vibration free performance and enhanced life.
Deep groove ball bearings packed with right quantity of special grease ensures long life.
Rigorous quality control testing at every stage of manufacturing ensures higher efficiency.
Low temperature with Class A/ Class E insulation ensures long trouble free operation.
Fitted with TOP.

Applications

Irrigation
Drinking water supply
Industrial water supply
Cooling water circulating systems

Technical Data

Power (H.P.)	Single Phase	0.5 HP - 2.0 HP
	Three Phase	3.0 HP - 50 HP
Versions	Single Phase	240 volts +6% -15% 50 Hz DUTY S1
	Three Phase	415 volts +6% -15% 50 Hz DUTY S1
Speed ( N )	2880 RPM
Discharge Range ( LPM )	Single Phase	20 LPM - 650 LPM
	Three Phase	300 LPM - 3300 LPM
Head Range ( Mtrs )	Single Phase	5 - 35 Mtrs
	Three Phase	20 - 70 Mtrs
Pipe Size ( MM )	Single Phase	32 X 25, 40 X40
	Three Phase	50 X 40, 65 X 50, 75 X 65 75 X 75, 100 X 75, 100 X 100
