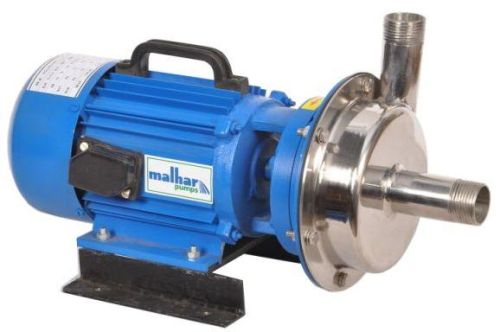

MALHAR 5-10kg Electric Centrifugal Monoblock Pumps, For Liquid Supply

applications

• milk, cream, butter milk, condensed milk

• fruit juice, sugar syrup

• vitamin solutions, sugar & confectionery.

• ro water, dm water, pure water. water for injection (wfi)

• vegetable oil, mineral oil, lub oil etc.

• pharmaceutical formulations, syrup etc.

• alkaline solution / alcoholic drinks.

• acids, fine chemicals

• bottling plants, soft drinks & distillery

• food processing / liquid food stuffs

• colour dyes and pigments / paints

• descaling applications, paper & cement industries

• water treatment plants

• detergent, soaps, paste & shampoo

• textile sizing, dyeing & finishing systems

• natural cellulose fiber / synthetic fiber system

• hot & cold water pumping.

features

as all pumps are made from rolled stainless steel, mechanical

properties are far superior than cast material.

• pore free, non-pitting and non-adhering smoother surface,

so lesser friction losses, and lesser service corrosion.

• super finished surface also ensures no ingress or emission of

germs or impurities during pumping or idling which is a basic

requirement of sterile / hygienic application.

• pump can handle liquids having viscosities

up to 1500 centipoises.

• pumps are highly energy efficient and requires lesser npsh to

function without cavitation.

• the pumps can work under a vacuum of 720 mm of hg,

suitable for vacuum evaporators.

• pumps are available with cosed/semi open impellers.

• the best elastomers are used in the pumps to provide optimum

resistance for high temperatures and chemicals.

• minimum working / rotating parts.

• safe and quiet operation levels.

• gentle product handling with lower maintenance and

downtime cost.

• dynamic combinations of seal faces as per customer's

requirement (single seal / double seal, seal external cooling ).

• suitable for standard motor or flange type or foot cum flange

type motor or engine

• monoblock or bare pumps or with trolley.

• also with flame proof motors.

• various types of connection like - tri'clove joints sms, flanges

or threaded nipple/coupling.

• pumps with adjustable legs, available on request.

• special bearing for hot water application available on request.
