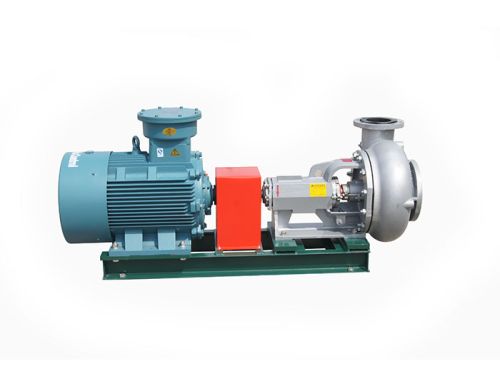

Centrifugal pump, Brand Name : DC SOLID CONTROL

Centrifugal Pump
Solid Control Equipment
Centrifugal Pumps are used to supply slurry to desanders and desilters, and at the same time can be kinetic pumps for jet mud mixers.
�1� Adopt high wear resistant hard alloy mechanical seal .
�2� Adopt imported bearings .
�3� Adopt thicker pump cases , whose flow passages are more reasonable , which can reduce turbulence to the minimum.
�4� Pump body adopts open structure , which makes the installation, repair and maintenance to be more convenient.
�5� Impellers and over-current components all adopt high wear resistant cast iron.
Model Flow Lift�m� Efficiency�%� NPSH�m� Power�kW� Speed�rpm� Dimension�mm� Weight�kg�
m3h GPM
DCSB8x6-14 320 1408 40 65 4.0 75 1480 1980�660�1030 1105
DCSB8x6-13 290 1276 33 64 4.5 55 1480 1910�660�930 945
