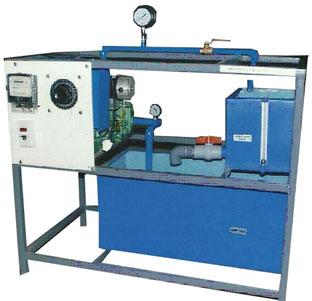

Centrifugal Pump Test Rig

The unit consists of a centrifugal pump provided with variable speed motor. The pump is provided with a vaccum gauge at suction and a pressure gauge on discharge pipe. The pump is provided with a variable speed drive & gate valve at discharge which facilitates estimation of pump performance at various speeds & discharge heads. Power input to motor is measure with energy meter.

SPECIFICATION

• Centrifugal pump1"x1" size,
• Motor – Variable Speed P.M.D. C. motor
• Speed Controller for Motor.
• Sump tank: 900X400X400MM
• Measuring Tank: 400X400X400MM.
• Energymeter for motor input measurement.
• Pressure & vaccum gauge for measurement of head.
• Stop watch.
• The assembly of pump & control are mounted on the sump tank.

RANGE OF EXPERIMENTS
Following characteristics can be studied at different speeds

• Discharge vs. Head
• Discharge vs. Input to pump
• Discharge vs. pump efficiency.

SERVICES REQUIRED

• Floor space of 1 m. x 1 m.
• 230 V., 15 A, A. C. supply with earthing connection.
