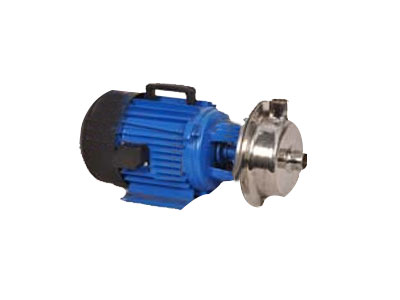

Centrifugal Pumps, Driven Type : Electric

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

eatures: As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material. Pore free, non-pitting and non-adhering smoother surface, so less friction....

View More Details

Send Enquiry

Company Information

Deep Engineering Co.,

Ctm, Ahmedabad, Gujarat

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

eatures:

As all pumps are made from rolled stainless steel, mechanical properties are far superior then cast material.
Pore free, non-pitting and non-adhering smoother surface, so less friction losses, and less crevice corrosion.
Super finish surface also ensure no ingress or emission of germs or impurities
Pumps are highly energy efficient and requires less NPSH to function without cavitation
Pump can handle liquids having viscosities up to 1500 centipoise
The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
Pumps are available with closed/semiopen impellers.
The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
Minimum working / rotating parts
Safe and quite operation levels.
Gentle product handling with lower maintenance and downline cost.
Dynamically combinations of seal faces as per customer's requirement (single seal / double seal, seal external cooling)
Suitable for standard motor or flange type or foot cam flange type motor or engine
Monobloc or bare pumps or with trolley
Also with flame proof motors
Various types of connection like - tri'clove joints SMS, Flanges or threaded nipple/coupling

"CFS" SERIES
Model	Hp	Size	Head in Metres Discharge in LPM at 2900 RPM
Model	Hp	Size	3	5	7	10	12	15	17	20	22	25	27	30	35	40
SCF-1	0.25	12 x 12	40	32	-	-	-	-	-	-	-	-	-	-	-	-
SCF-2	0.5	25 x 25	-	100	45	-	-	-	-	-	-	-	-	-	-	-
SCF-3	1	25 x 25	-	-	140	120	70	35	-	-	-	-	-	-	-	-
SCF-3A	1	38 x 38	-	-	181	95	50	-	-	-	-	-	-	-	-	-
SCF-4A	1.5	38 x 38	-	-	-	-	-	160	130	90	75	-	-	-	-	-
SCF-4B	1.5	50 x 50	-	-	-	-	-	250	166	85	-	-	-	-	-	-
SCF-5A	2	38 x 38	-	-	-	-	225	190	155	105	78	40	-	-	-	-
SCF-5B	2	50 x 50	-	-	330	250	160	80	-	-	-	-	-	-	-	-
SCF-6A	3	50 x 38	-	-	-	-	-	-	250	220	180	135	108	50	-	-
SCF-6B	3	50 x 50	-	-	-	-	-	330	300	280	225	150	85	-	-	-

Model	Hp	Size	Head in Metres Discharge in LPM at 2900 RPM
Model	Hp	Size	16	20	24	28	32	36	40	44	48
SCF-7A	5	50 x 38	-	-	260	230	190	145	90	-	-
SCF-7B	5	50 x 50	400	370	300	230	180	-	-	-	-
SCF-8A	7.5	50 x 38	-	-	290	280	250	225	190	120	60
SCF-8B	7.5	65 x 50	500	450	385	280	230	-	-	-	-
SCF-9A	10	50 x 38	-	500	480	470	450	410	350	290	190
SCF-9B	10	65 x 50	560	510	450	370	280	210	150	-	-
