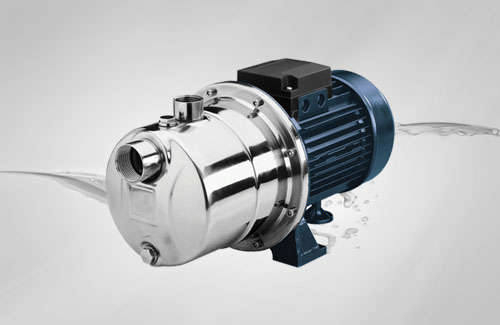

Centrifugal Self Priming Pumps With SS Body

Series self-priming electric pumps, equipped with waterproof plug & power cord and watertight switch. It is suitable for gardening, water supply, washing, increasing water pressure, ect. It is usually can be combined with a pressure switch and surge tank to be used as Domestic Water System for distributing water.

Motor

- T. E. F. C., class F insulation

- Ip55 protection, continuous duty

- Maximum ambient temperature: +40°C

- Single phase version: 220V/50Hz, 2800rpm

- Three phase version: 380V/50Hz, 2800rpm

- Overload protection can be provided upon request

Working Condition

- Suction/Discharge size: G1"

- Max. Working pressure: 6 bar

- Max. Working temperature: 45°C

- Max. Suction head: 8m
