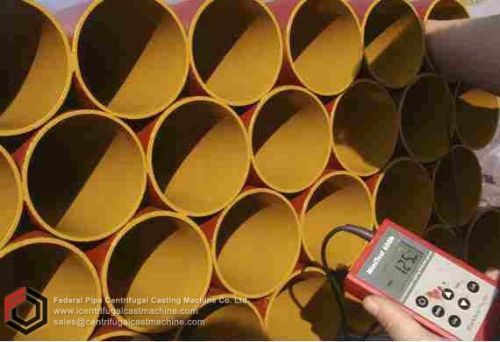

Centrifugally Cast Grey Iron Pipes

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Owing to our quality-oriented approach, we have carved a niche in the industry by offering an enormous range of Centrifugally Cast Grey Iron Pipes. They are manufactured using high-grade raw material and advance technology by our professionals. Centrifugally Cast Grey Iron Pipes find application in water drainage, water or gas delivery, soil irrigation, etc. Clients can avail Centrifugally Cast Grey Iron Pipes from us in different specifications as per their needs.

View More Details

Send Enquiry

Technical Specifications

Items		Pull Strength	Hardness	Yield (≥ MPa)
Standard	EN877	200 min.	260 max.	350 min.
Length	3000mm
Diameter	DN40-DN300
Pipe Wall Thickness	2.5mm-6.0mm
Material Quality	Cast Iron
Coating	Epoxy painting more than 120um

Application : Construction Water Drainage, Water or Gas Delivery, Soil Irrigation.

Pipe Size Conversion

Dia (inch)	Outer Dia(mm)	Wall Thickness (mm)	Length(mm)	Weight(kg)
Φ3	86±1.0	4.3-0.7	3000±10	24.6
Φ4	111±1.0	4.4-0.7	3000±10	34.4
Φ5	137±1.5	4.8-1.0	3000±10	41.9
Φ6	162±1.5	4.8-1.0	3000±10	51.2
Φ8	214±1.5	5.8-1.0	3000±10	81.9
Φ10	268±1.8	6.4-1.2	3000±10	113.6
Φ12	318±0.18	7.0-1.2	3000±10	148.0
