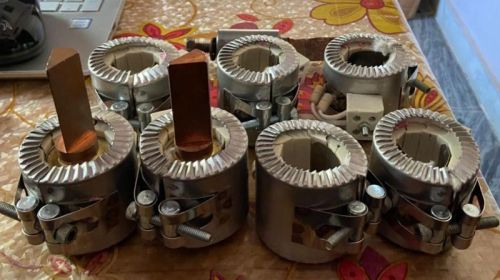

Silver 240V Well Finished Ceramic Band Heater, For Industrial Use, Power Source : Electric

Silver 240V Well Finished Ceramic Band Heater, For Industrial Use, Power Source : Electric

Listing ID #7080646

Get Latest Price

MOQ 10 Piece
ConditionNew
Power SourceElectric
ApplicationIndustrial Use
Voltage240V, 400V-415V
Supply Type Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Product Details

Condition New
Power Source Electric
Application Industrial Use
Voltage 240V, 400V-415V
Thickness 10-12 Mm
Power As per customized
Finishing Well Finished
Color Silver
Wire Termination Style Customize
Cut-out & Hole As per Customize
Minimum ID 50 mm
Sheathing Stainless Steel, Galvanized Aluminum
Watt Density Calculation in Inch Sq (Wattage)/ {(ID*Width*3.14285)/ (25.4*25.4)}
Outer Part Material Stainless Steel Grade(SS304, SS316, SS321 & SS310) , Incoloy 600, Incoloy 800, as Per Application Temperature requirement.
Lead Wire Type Fiber Glass. Teflon Lead wire, Braiding
Maximum Width 900 mm
Minimum Width 50 mm
Wattage 45 W Inch Square 114 W Per Cm Square
Watt Density Calculation in Cm Sq (Wattage)/ {(ID*Width*3.14285)/ (2.54*2.54)}
Connector As per Customize
Maximum Temperature 1100 °C
Phase 1-Phase, 2-Phase& 3-Phase,
Shape As per customized requirement. Square, L, U, W etc
Terminal Box As per Customize
Ceramic Knuckle Type High Grade
Power Supply 24 V up to 480 V
Insulation As per Customize
Maximum ID 1200 mm (3-PART)
Connection Type Series/Parallel
Note Customized Product Available as per Requirement
Heating Element Grade Ni: Cr (80:20), Kanthal A1

We are glad to inform you that we are supplier of these types of heating element in this segment which can be wrapped around cylindrical surface in easy form.
We would like to express our strength that we are already supplying these types of special heating element for research fields with super quality.

These heaters are used for heating dyes, molds, barrels in plastic processing industries; they can achieve needed temperature quickly with lesser power consumption.
In ceramic heaters, spirally wound resistance coil is inserted in ceramic steatites helping to design heater having higher watt densities with long lasting life.
They are supplied in S.S sheath with thermal insulation to avoid heat losses. Higher wattage allows faster & efficient heating.
Possible to be made in single or split construction as per the application demand. Various connections & terminations can be provided.
Based on the application various end terminations can be provided.
When ordering kindly provide Inner Diameter, Width, Wattage, Voltage, Orientation of Thermocouple hole, End termination.

Features :

Minimum Heat Loss
Better heater Life
Easy installation & Removal
Customize design
Uniform Temperature Up to 1100 Degree C

Construction
Perfect Heat Ceramic Band Heater design consist of a helically wound resistance coil made from Kanthal A1/ 80/20 Nichrome wire, evenly stretched and precisely strung through specially designed ceramic insulating bricks/ Knuckles forming a flexible heating mat. The ceramic heating mat along with ceramic fibre insulation is placed on a stainless-steel housing made with serrated edges providing maximum flexibility for easy installation.
Perfect heat Ceramic Band heater is developed to match industrial requirements for high Temperatures up to 1100 °C.
Applications :

Injection moulding
Extruders & Blow moulding
Packaging & Sealing equipment application
