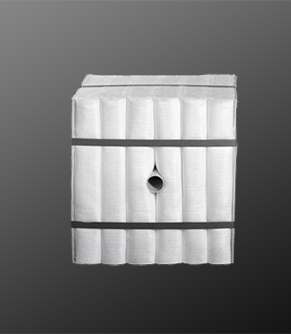

Ceramic Fiber Module

Ceramic fiber module
characteristic:
ceramic fibre module adopt high quality ceramic fibre blanket, which is made up to compression module after folding, compression, packing, module can choose kinds combination of anchor and furnace body, installation method is so simple that quicken the speed of furnace lining construction largely,after installation, the bandaging are cut and the modules and so to form an integrated insulating lining.
The anchor system in remote from he module hot face, maintaining the metal components at a relatively low temperature
the anchorage on the back allows for both in-line and parquet installation.
The decompression of the blanket folds gives tightly sealed intermodular joints with both configurations
the resilient blanket is resistant to mechanical damage
low thermal conductivity give high thermal efficiency
total resistance to thermal shock
no drying or curing required – so available for production operation immediately after installation
the anchor is remote form the module hot face
application
heat treatment: annealing furnace, tempering furnace, soaking pit, etc
ceramic: whiteware, sanitary ware and brick firing tunnel and intermitted kiln.
Iron and steel: transfer ladle lids, soaking pit covers, reheating furnace, continuous annealing furnaces, lift-off furnaces
petrochemical: ethylene pyrolysis furnace,reformers,atmosphere reduced pressure furnace,ductwork pyrolysis heaters
aluminium: soaking pits and covers, bale out furnaces, homogenizing and ductwork
utilities: waste heat recovery units, combustion chambers and boiler ductwork
type std hp ha hz st-1500 st-1600
classification    temperature( ℃) 1100 1260 1360 1430 1500 1600
