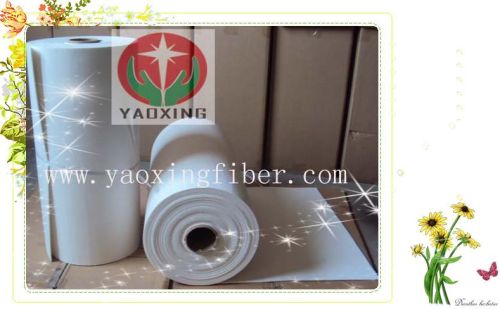

Ceramic Fiber Paper, Packaging Type : White for Heat Insulation

Product Series：
1260 Ceramic Fiber Paper Yxtx-236
1400 Ceramic Fiber Paper Yxtx-336
description
1.our Ceramic Fiber Paper is Processed from the High Purity Fiber, Which Can Be Used in the Field of High Temperature Insulation. Because We have Adopted the Advanced Processing Work, We Cannot Only Make the Fiber Interweave Shapely, But also Can Control the Thickness and the Density Rigidly.
2.a Spot of Bonding Agent Has Been Added Into the Fiber During Processing, Which Has Been Chosen and Controlled Scientifically, Can Be Burnt During Application.
characteristic:
1.low Heat Storage
2.low Thermal Conductivity
3.excellent Thermal Electrical Insulation
4.excellent Machine-processed Capability
5.excellent Broken Resistance
6.excellent Flexibility
7.low Shot Content
application：
1.industrial Insulating ,Sealing and Protecting Materials
2.electric and Thermal Insulation Materials for Electric Industry
3.insulation Materials for Instrument-equipment
4.insulating Materials for Motor Industry
5.filling Materials for Expansion Slot
6.insulating Materials as the Sinter Resistance
7.sealing Gasket for Molten Metal
8.fireproof Materials
technical Index：
classification Temperature 1260 1400
name st Ceramic Fiber Paper hz Ceramic Fiber Paper
code yxtx-236 yxtx-336
shrinkage On Heating (%) 1000℃×24h ≤-3 1350℃×24h≤-3
Theoretical
thermal Conductivity
(w/m·k) (200℃average)
(400℃average)
(600℃average) 0.075-0.085
0.110-0.121
0.160-0.170
organic Content (%) ≤ 10 ≤ 8
theoretical Density (kg/m3) 200±15
tensile Strength (mpa) ≥0.3 ≥0.2
moisture Content(%) ≤1
specification (mm) 100000/12000×610/1220×0.5/7,
according to Your Requirements
package plastic Bag Inside, Carton Box Outside
quality Control System iso9001-2000, Iso14001-1996
loading
specification
(mm) density
(kg/m3) nw/cnt
(kg) cnt Size
(mm) qty/cnt
(roll) cont Size
(foot) pcs/cont
(cnts)
5*610*12000 200 7.32 320*320*620 1 20 441
3*610*20000 200 7.32 320*320*620 1 40gp 931
1*610*60000 200 7.32 320*320*620 1 40hq 1064
