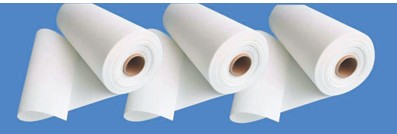

Ceramic Fiber Paper, Packaging Type : white

1. OPERATION TEMPERATURE
1260 ℃
2. TECHNICAL FEATURE
Low coefficient of heat-conduction ratio
Low thermal capacity
Thermal shock resistance
High quality of flexibility and tear resistance
Not contain asbestos, erosion resistance
High quality of insulation and sound proof
Excellent mechanical processing capability
Tough material and high compression resistance
3. PRODUCTION ENGEERING
Based on traditional process of paper making and paper machinery, the mechanical product line of wet inorganic fiber paper is developed and established. With the special refractory fiber paper as raw material, high quality paper is made through removing residue, mixing slurry, long-mesh shaping, vacuum dehydrating, drying, cutting and rolling etc.
4. TECHNICAL FEATURE:
Low coefficient of heat conductivity
Low thermal capacity
Thermal vibration resistance
High flexibility
No Asbestos, resistance to corrosion, no reaction to aluminum liquid
High electric insulation and sound insulation
High machining property
High compression strength
5. APPLICATION:
Industrial isolation and enclosing
Isolation and heat insulation for electric heating equipments
Heat insulation materials of auto industry
Classification Temperature ℃
1260
1260
1260
Density kg/m3
200±15
200±15
200±15
Organic content %
6-8
6-8
6-8
Thermal conductivity under mean temperature (w/m.k) Density 128kg/m3
200℃
0.075-0.085
400℃
0.115-0.121
600℃
0.165-0.175
Chemical
Composition
(%)
AL2O3
45-46
45-46
45-46
SIO2
51-52
51-52
51-52
Size（mm）
40000×1220×1
20000×1220×2
40000×1220×1
20000×1220×2
40000×1220×1
20000×1220×2
