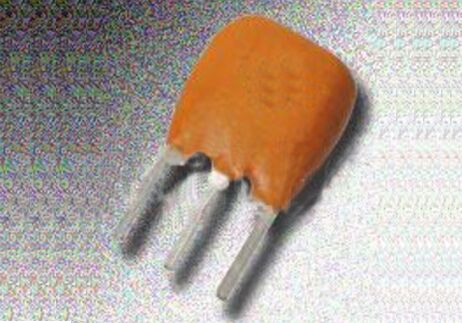

Ceramic Resonators

FEATURES LOW COST BUILT-IN CAPACITORS SPECIFICATIONS FREQUENCY 1.80-6.00 MHz 6.01-13.00 MHz 13.01-50.00 MHz DIMENSIONS FIGURE 1 FIGURE 2 FREQUENCY TOLERANCE ±0.5% MAX RESO NANT IMPEDANCE 30 OHMS MAX 25 OHMS MAX 30 OHMS MAX FREQ UENCY STABILITY OVER TEMPERATURE ±0.3% MAX OPERATING TEMPERATURE RANGE -20°C TO +80°C ISO LATIO N RESISTANCE 100 M OHM MIN FREQ UENCY AGING (10 Y EARS) ±0.3% MAX W ITHSTANDING VO LTAGE 100 VDC, 5 s e c. MAX BU ILT-IN CAPACITANCE 30 pF ±20% MAX MAX VO LTAGE 6 VDC, 15Vp-p AC STORAGE TEMPERATURE RANGE 35°C TO +85°C
