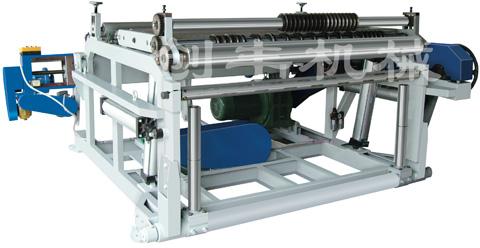

Contact SupplierPaper Slitting Rewinding Machine:
1.Specification:
1). paper slitting rewinding machine is used widely for slitting and rewinding paper roll.
2). Material: kraft paper, bobbin paper, coreboard, tea paperboard, PE coated paper, etc.
2. Technical Parameter:
Unwind Width 1600mm(standard)
Unwind Diameter 1200mm(max)
rewind Diameter 1200mm(max)
rewind Width 40mm(min)
Main Motor 7.5KW
Power Supply 380V 50HZ (standard)
Lifting Motor 1.1kw(1 set)
Clamping Motor 1.1kw(2 set)
Machinery Speed 250m/min
Parent Roll Braking Device 2 set
Working Air Pressure 0.6mpa
Carriager Lifting Cylinder SC100*600 (2 set)
Independent Electrical operayon box 1 set
Knife quantity 18 set (standard)
Gross weight 2900kg
Operator 1 person
Overall dimension 4000*3000*2000mm
Remark: 1. Above are standard parameters.
2. welcome to e-mail me directly, let us discuss your detailed parameter. Thanks in advance.
