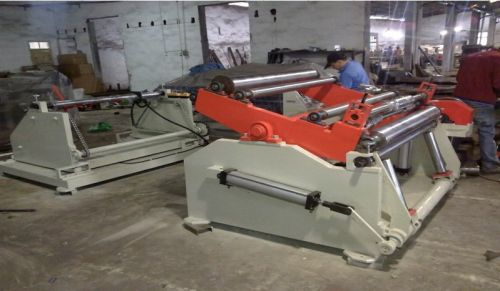

Cffq-h-150 Jumbo Paper Roll Slitting Rewinding Machine

Paper Roll Slitter Rewinder Machine
1. Specification:
1). Material:kraft paper, coreboard, Tea paperboard, recycled paper, art post paperboard, textile spool paperboard, etc.
2). Suitable for paper roll slitting and rewinding, making Jumbo paper roll into custom width.
2. Feature:
1). plate and smooth on the both sides of the paper strap after cutting.
2). electronic control the pneumatic pressure to correct an error,so high precision.
3). frequency conversion controller makes low noise.
4). change cutting width between30-1600mm by yourself.
5). all operation focus on counter,so more convenient.
6). the slitted paper roll can working for three machine to making paper tube.
7). Manual loding and pneumatic unloading
Technical Parameter:
Material thickness 40-600 gram
Material paper width 600-1600mm (standard)
unwind diameter 1200(max)
rewind diameter 800(max)
Cutting width 30mm(MIN)
Cutting speed 200m/min
Power supply 380V 50HZ (standard)
main motor 7.5kw
lifting motor 2.2kw(unwind roll)
clamping motor manual
waste edge blower motor 5.5kw
machinery speed 350/min
digital tension control 1 set
Base paper clamp 1 set (3 inch)
Material shaft braking device 1 set
edge correcting 1 set ( electric control)
overall dimension 4000*3000*1300mm
Remark: 1. above are standard parameters.
2. If you need more detailed info, pls e-mail or call me directly .thank you in advance
