Cfp 100g Optical Transceiver

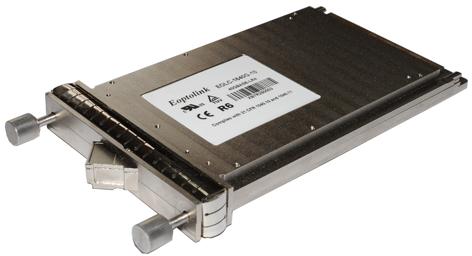

We are offering cfp 100g optical transceiver. Eoptolink cfp 100gbase-lr4 module supports a link length of 10 kilometers on standard single-mode fiber (smf, g.652). 100 gigabit ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
cfp msa package with duplex lc connector(straightangled)
integrated heat sink optional
supports multi-rate from 103.1gbs to 111.8gbs aggregate
lane bit rate 25.78 gbs gbe, 27.95 gbs otu4
up to 10km transmission on smf
eml laser and pin receiver
high speed io electrical interface (caui)
mdio interface with integrated digital diagnostic monitoring
single +3.3v power supply
maximum power consumption 16 w
operating case temperature: -5â°c to +70â°c
compliant to rohs directive 201165eu
ordering information:
part no. data rate fiber distance interface temp. ddmi
eolc-161hg-10-l 103gbps smf 10km lc standard yes
eolc-161hg-10-la 112gbps smf 10km lc standard yes
cfp wiki
tx&sensetivity cfp lr4
the cfp multi-source agreement (msa) defines hot-pluggable optical transceiver form factors to enable 40gbs and 100gbs applications, including next-generation high speed ethernet (40gbe and 100gbe). Pluggable cfp, cfp2 and cfp4 transceivers will support the ultra-high bandwidth requirements of data communications and telecommunication networks that form the backbone of the internet.
