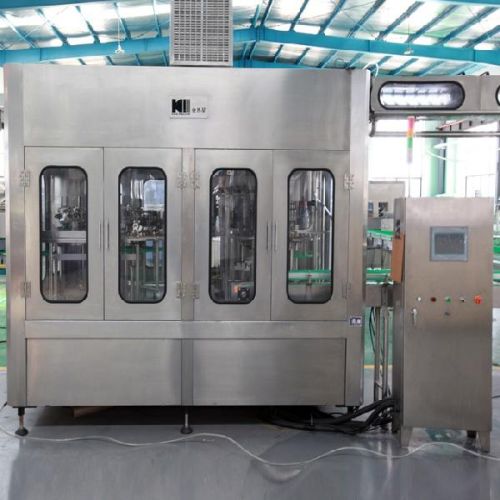

CGF Series Water Filling Machine

Quick Details
Type: Filling Machine
Condition: New
Application: Beverage
Packaging Type: Bottles
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: can be made according to customer
Power: 3KW
Place of Origin: Jiangsu, China (Mainland)
Brand Name: KING MACHINE
Model Number: KM(CGF16-16-5)
Dimension(L*W*H): 2600*1900*2300mm
Weight: 4000KGS
Certification: CE,ISO,SGS
After-sales Service Provided: Engineers available to service machinery overseas
Machine Name: Hot Sale Non Carbonated Water Filling Machine
Rinsing Pump power: 0.37KW
Filling Pump power: 0.75KW
Cap unscrambler motor: 0.37KW
Capacity: 4000bph for 500ml
Suitable bottle size: 250ml-1500ml
Suitable bottle diameter: 50-90mm
Suitable bottle height: 150-310mm
Total Power: 4.49KW
Main electrical components: Siemens Brand
Washing, filling and capping 3-in-1 Machine
The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
Features:
According to the customer requirements and the source water quality, we adopt different equipment to produce pure water, mineral water,etc. The main equipments are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator,water tank,etc. The treatment capacity is 0.5-50 ton/hour.
