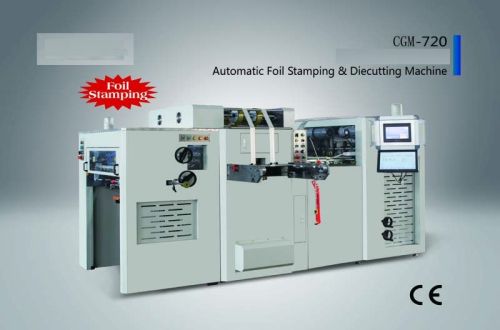

CGM-720 Foil Stamping and Die Cutting Machine

Adopt traditional workcraft, build stable machine. Although not very fast, it is stable, reliable and economic.

Details : This machine has realized automation in whole processes of paper feeding, die cutting, foil stamping and paper delivery. Besides, it also has the function of auto-checking, displaying of malfunction. Main motor is controlled by transducer, realizing stepless speed regulation and smooth running. Stamping is controlled by computer, with data-entering from touch screen realizing auto calculating foil stepping and less consumption of material. The main driving system is equipped with pneumatic clutch and brake device and other safety device to prevent from accident damage, fully ensure the security of operator and machine.

Parameters:

Max. Sheet Size

720×520 mm

Suitable paper

Cardboard:0.1ï½ï¿½1.5 mm; E Flute Corrugated Paper

 Min. Sheet Size

320×210 mm

Foil Feeding Unit

Lateral 2 shafts

Max. Die Cutting Size

710×510 mm

Max. Diameter of Foil Coil

φ100 mm

1 ″core

Max. Stamping Size

700×500

Independent Heating Zone

3 Zones

Temperature

0-199�

Power of heating plate

5.4 Kw

Die Cutting Precision

±0.1mm

Main Motor Power

7.5 Kw

Max. Die Cutting Speed

7000S/H

Total Power

25 Kw

Max. Foil Stamping Speed

5000S/H

Total Weight

7000 Kgs

Max. Pressure

200KN

Overall Dimension

3500X2200X1850mm

Remarksï¼ï¿½the above information is correct when compilation, we keep the right to change for better performance without notice.
