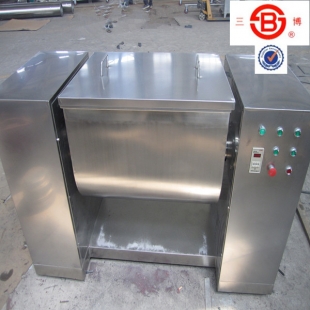

Ch Slot Mixing Machine, Brand Name : haijiang

We are offering Ch Slot Mixing Machine.
By machinery transmission, the machine makes stirring oar rotate, drive material turning to-and –fro, after even mixing, add the binder, then made into the required damp material which conforms next process.
We can also choose GHL high-speed granulator for wet material.
☞ Technical Data
1.ltem Specification CH-100 CH-150 CH-200 CH-400 CH-600
2.Working volume (L ) 100 150 200 400 600
3.Motor power (Kw) 2.2 3 4 5.5 11
4.Stirring rotating speed (rmin) 24
5.Feeding angle 105 105 105 105 105
6.Weight(Kg) 400 500 600 700 900
7.Overall dimension(LxWxH)(mm) 1400x580x1000 1600x600x1050 1870x650x1065 2400x750x1100 2600x800x1200.
