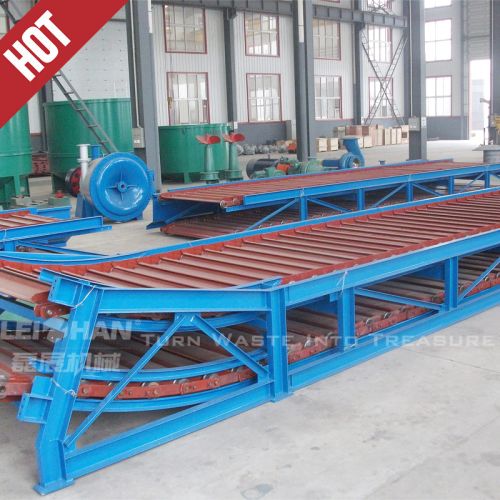

Chain Conveyor For Paper Making Ling, Packaging Type : Blue

₹ 9.05 Lakh / 50000 50000 Set

MOQ1 Set(s)
Country of Origin380V
After service provideEngineers available to service machinery overseas
Wrranty1year
Supply TypeManufacturer
Preferred Buyer Location All over the world

We are offering Chain Conveyor for Paper Making Ling. Product Description Specification 1. Larger loath capacity 2.Easy maintenance 3.Dependable performance 4.Running cost economy 5.Easy to....

Company Information

Zhengzhou Leizhan Technology Paper Machinery Co., LTD.

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 1983

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are offering Chain Conveyor for Paper Making Ling.
Product Description
Specification
1. Larger loath capacity
2.Easy maintenance
3.Dependable performance
4.Running cost economy
5.Easy to operate
Usage
Trough scraper chain conveyors
used for conveying waste paper and pulp board to the hydrapulper to make toilet tissue,writing,and kraft paper
Intended particularly for loading of waste pape(loose or in bales) or chemical pulp into a pulper.
As to thedesign, basic dimensions and parameters may differ and can be adapted to particular projects.
Waste paper (loose or in bales), respectively chemical pulp, is loaded in a hopper and from here conveyed by means of a conveying chain or a band to its discharging point where falling into a pulper chest.
Main specification:
Type BFW
Width of chain plate(mm) 1200 1400 1600 1800 2000 2200 2400 2600
Capacity (m3h) 60-220 80-255 95-300 110-345 140-390 160-430 200-500 240-600
Materials waste paper or paper pulp plate
Max.Limit of Material (mm) 1000 1200 1400 1600 1800 2000 2200 2400
Motor power(Kw) 5.5 7.5 11 5 18.5 22-30 30-45 37-55
